SKU: UCW.202-9

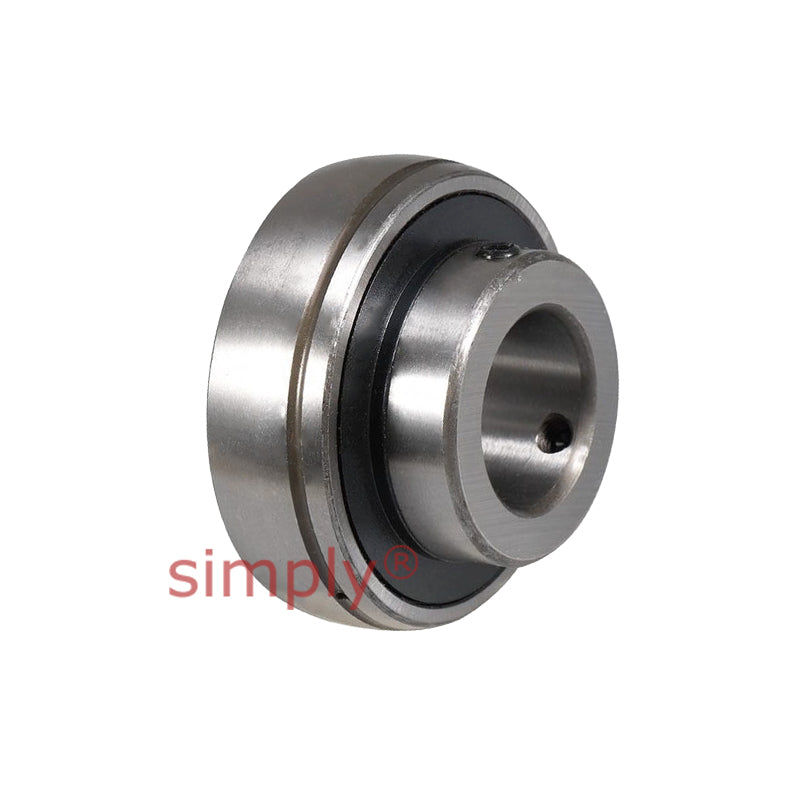

UCW202-9 Imperial Bearing Insert with 9/16 inch Bore 40mm Outside Dia
UCW202-9 Imperial Bearing Insert with 9/16 inch Bore 40mm Outside Dia
Regular price
£20.27
ex VAT£24.32inc. VAT
Regular price
Sale price
£20.27
ex VAT£24.32
inc. VAT
In stock
Price Break
3+
£18.04
4+
£17.02
9+
£16.82
19+
£16.62
49+
£16.42
99+
£16.21
499+
£15.20
999+
£15.00
1999+
£14.80
2999+
£14.59
4999+
£14.19
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Outside Diameter:
- 40mm
- Style:
- UCW
Technical
Technical
| d | 9/16 inch |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | 10-32 UNF |
| Weight | 0.11 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
