SKU: UCW.202

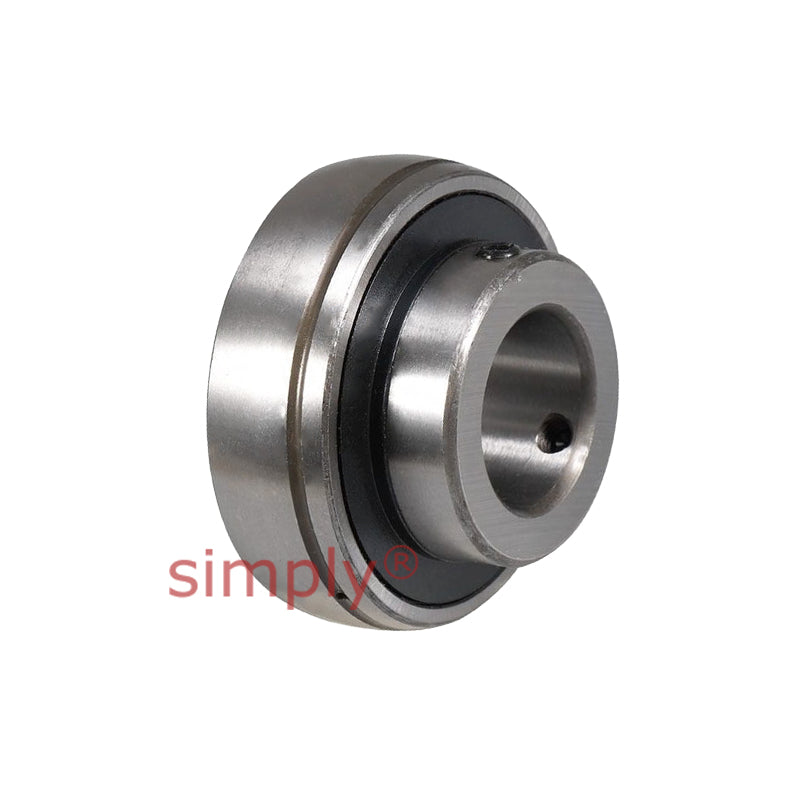

UCW202 Metric Bearing Insert with 15mm Bore 40mm Outside Dia
UCW202 Metric Bearing Insert with 15mm Bore 40mm Outside Dia
Regular price
£9.06
ex VAT£10.87inc. VAT
Regular price
Sale price
£9.06
ex VAT£10.87
inc. VAT
In stock
Price Break
3+
£8.06
4+
£7.61
9+
£7.52
19+
£7.43
49+
£7.34
99+
£7.25
499+
£6.79
999+
£6.70
1999+
£6.61
2999+
£6.52
4999+
£6.34
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 40mm
- Style:
- UCW
Technical
Technical
| d | 15mm |
|---|---|
| D | 40mm |
| Bi | 27.4mm |
| Be | 14mm |
| n | 11.5mm |
| m | 15.9mm |
| G | 4.2mm |
| Grub screw | M5x0.8 |
| Weight | 0.11 kg |
| Dynamic load | 973 kgf |
| Static load | 487 kgf |
