SKU: UCUP201D1-NTN

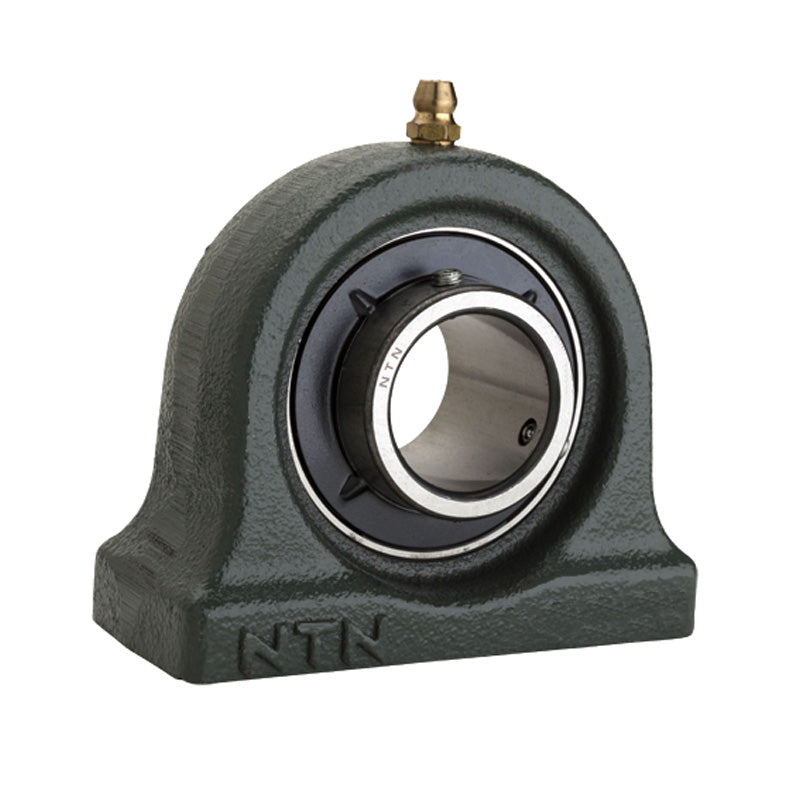

NTN UCUP201D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert - Allow 2-3 Days
NTN UCUP201D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert - Allow 2-3 Days
Regular price
£30.99
ex VAT£37.19inc. VAT
Regular price
Sale price
£30.99
ex VAT£37.19
inc. VAT
Allow 2-3 Days
In stock
Price Break
5+
£30.68
10+
£29.44
20+
£28.82
50+
£27.89
100+
£27.27
500+
£25.72
1000+
£21.69
Couldn't load pickup availability
Share this product
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Style:
- UCUP
- Bolt Hole Centres:
- 52mm
Technical
Technical
| Shaft diameter | 12mm |
|---|---|
| H | 30.2mm |
| L | 76mm |
| J | 52mm |
| A | 38mm |
| j | 13mm |
| H<sub>1</sub> | 11mm |
| H<sub>2</sub> | 62mm |
| B | 31mm |
| S | 12.7mm |
| N | M10X1.5 |
| Mass | 0.6 kg |
