SKU: UCTX10-31

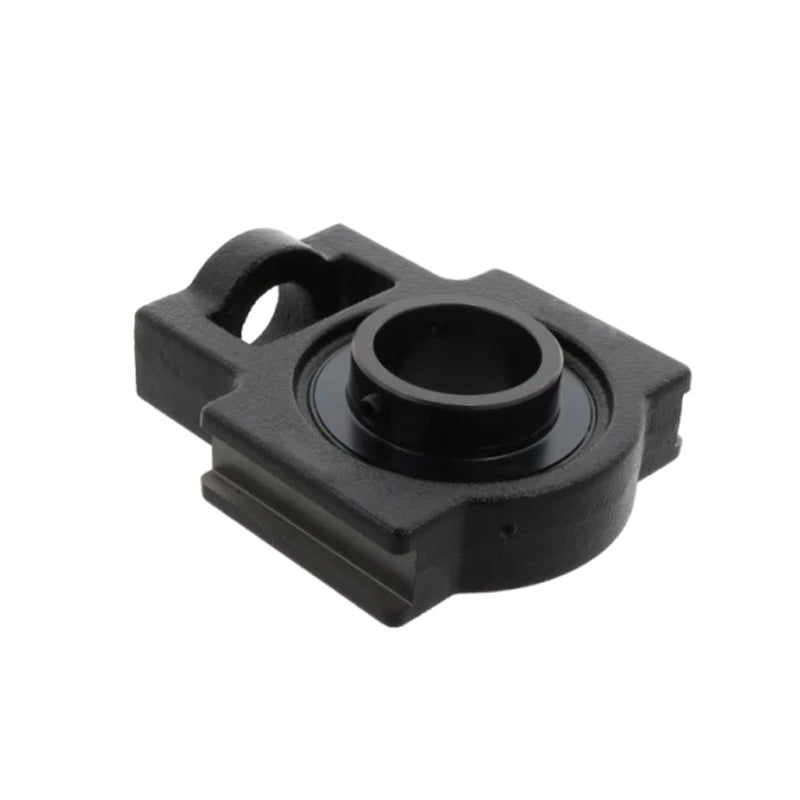

UCTX10-31 Imperial Cast Iron Take Up Unit Housing with 1-15/16 inch Bore Insert
UCTX10-31 Imperial Cast Iron Take Up Unit Housing with 1-15/16 inch Bore Insert
Regular price
£38.45
ex VAT£46.14inc. VAT
Regular price
Sale price
£38.45
ex VAT£46.14
inc. VAT
In stock
Price Break
10+
£34.22
19+
£32.30
29+
£31.91
39+
£31.53
49+
£31.14
74+
£30.76
99+
£28.84
199+
£28.45
249+
£28.07
499+
£27.68
999+
£26.92
Couldn't load pickup availability
Description
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- UCTX
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| o | 63/64 inch |
| g | 13/16 inch |
| p | 4-1/64 inch |
| q | 2-33/64 inch |
| s | 1-3/8 inch |
| b | 3-3/4 inch |
| k | 0.866 inch |
| e | 5-1/8 inch |
| a | 5-3/4 inch |
| w | 6-47/64 inch |
| j | 1-21/32 inch |
| l | 2-33/64 inch |
| h | 4-11/64 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bearing no | UCX10-31 |
| Housing no | TX10 |
| Weight | 4.2 kg |
