SKU: UCT324D1-NTN

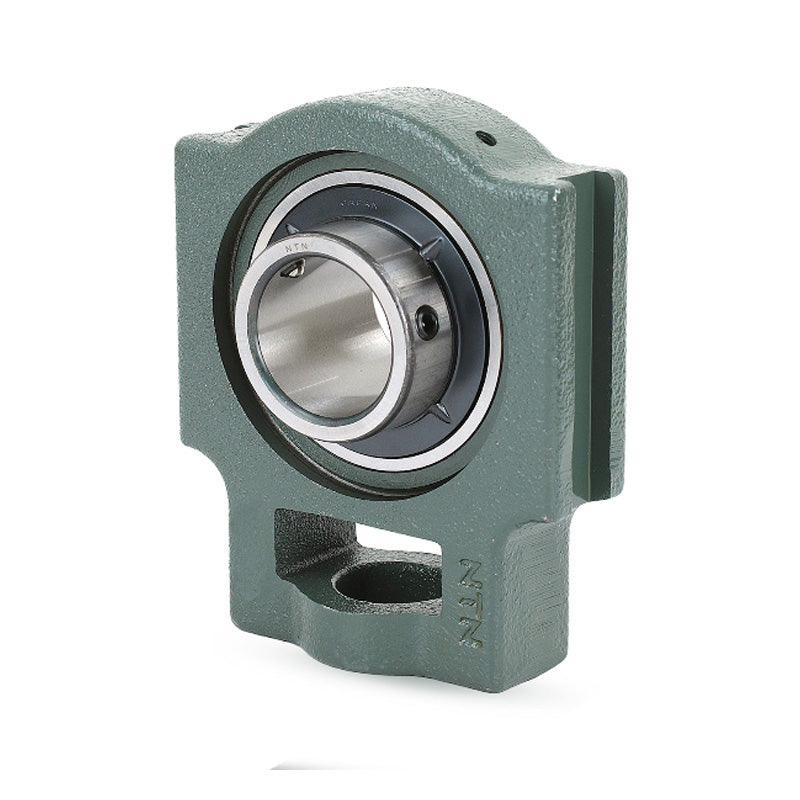

NTN UCT324D1 Metric Cast Iron Take Up Unit with 120mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT324D1 Metric Cast Iron Take Up Unit with 120mm Bore Bearing Unit - Allow 2-3 Days
Regular price £1,107.06 ex VAT£1,328.47inc. VAT
Regular price Sale price £1,107.06 ex VAT£1,328.47 inc. VAT
Sale Sold out

In stock

Price Break
3+ £1,051.71
4+ £996.35
9+ £941.00
19+ £885.65
49+ £863.51
99+ £841.37
499+ £730.66
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 120mm
N<sub>1</sub> 60mm
L<sub>2</sub> 44mm
H<sub>2</sub> 210mm
N<sub>2</sub> 140mm
N 70mm
L<sub>3</sub> 230mm
A<sub>1</sub> 45mm
H<sub>1</sub> 320mm
H 355mm
L 432mm
A<sub>2</sub> 90mm
A 140mm
r 165mm
L<sub>1</sub> 267mm
B 126mm
S 51mm
--- Load rating
Dynamic load C<sub>r</sub> 229 kN
Static load C<sub>0r</sub> 185 kN
Fatigue load limit C<sub>u</sub> 10.5 kN
--- Unit information
Mass 43 kg
