SKU: UCT321D1-NTN

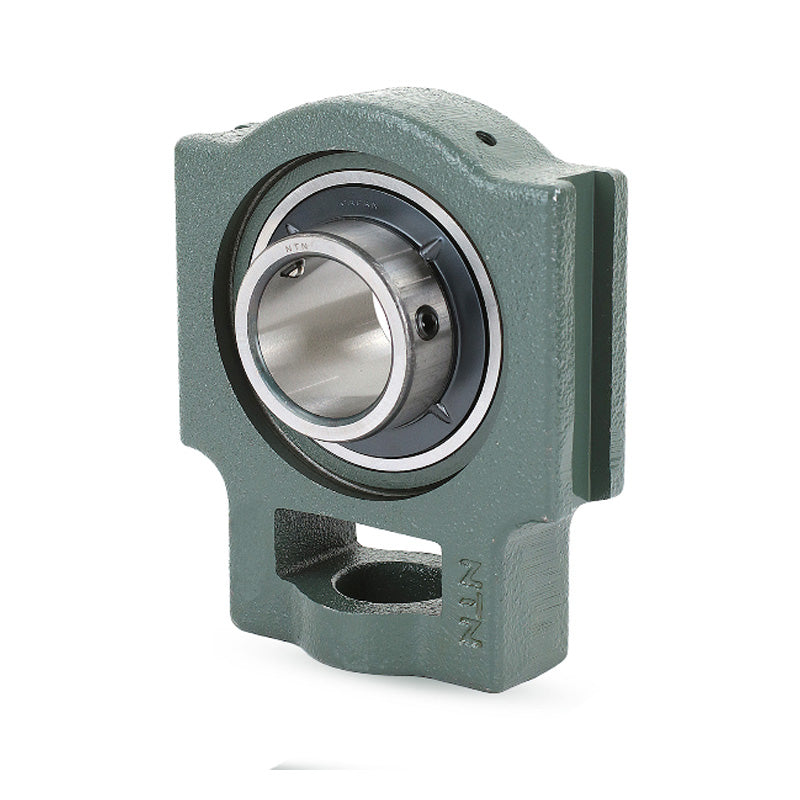

NTN UCT321D1 Metric Cast Iron Take Up Unit with 105mm Bore Bearing Unit - Allow 2-3 Days

NTN UCT321D1 Metric Cast Iron Take Up Unit with 105mm Bore Bearing Unit - Allow 2-3 Days
Regular price £754.60 ex VAT£905.52inc. VAT
Regular price Sale price £754.60 ex VAT£905.52 inc. VAT
Sale Sold out

In stock

Price Break
3+ £716.87
4+ £679.14
9+ £641.41
19+ £603.68
49+ £588.59
99+ £573.50
499+ £498.04
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 105mm
N<sub>1</sub> 48mm
L<sub>2</sub> 34mm
H<sub>2</sub> 175mm
N<sub>2</sub> 115mm
N 59mm
L<sub>3</sub> 200mm
A<sub>1</sub> 35mm
H<sub>1</sub> 260mm
H 290mm
L 347mm
A<sub>2</sub> 75mm
A 120mm
r 135mm
L<sub>1</sub> 212mm
B 112mm
S 44mm
--- Load rating
Dynamic load C<sub>r</sub> 204 kN
Static load C<sub>0r</sub> 153 kN
Fatigue load limit C<sub>u</sub> 9.35 kN
--- Unit information
Mass 30 kg
