SKU: UCT320

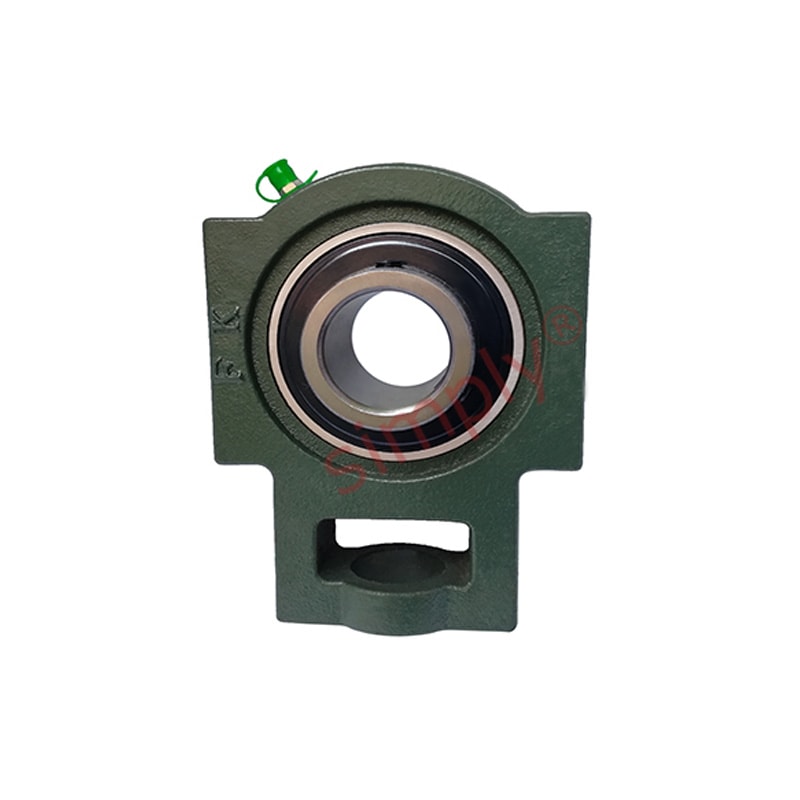

UCT320 Metric Cast Iron Take Up Unit Housing with 100mm Bore Insert
UCT320 Metric Cast Iron Take Up Unit Housing with 100mm Bore Insert
Regular price
£427.92
ex VAT£513.50inc. VAT
Regular price
Sale price
£427.92
ex VAT£513.50
inc. VAT
In stock
Price Break
3+
£380.85
4+
£359.45
9+
£355.17
19+
£350.89
49+
£346.61
99+
£342.33
499+
£320.94
999+
£316.66
1999+
£312.38
2999+
£308.10
4999+
£299.54
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Style:
- UCT
Technical
Technical
| d | 100mm |
|---|---|
| o | 48mm |
| g | 32mm |
| p | 175mm |
| q | 115mm |
| s | 59mm |
| b | 200mm |
| k | 35mm |
| e | 260mm |
| a | 290mm |
| w | 345mm |
| j | 120mm |
| l | 75mm |
| h | 210mm |
| B | 108mm |
| n | 42mm |
| Bearing no | UC320 |
| Housing no | T320 |
| Weight | 29.9 kg |
