SKU: UCT317

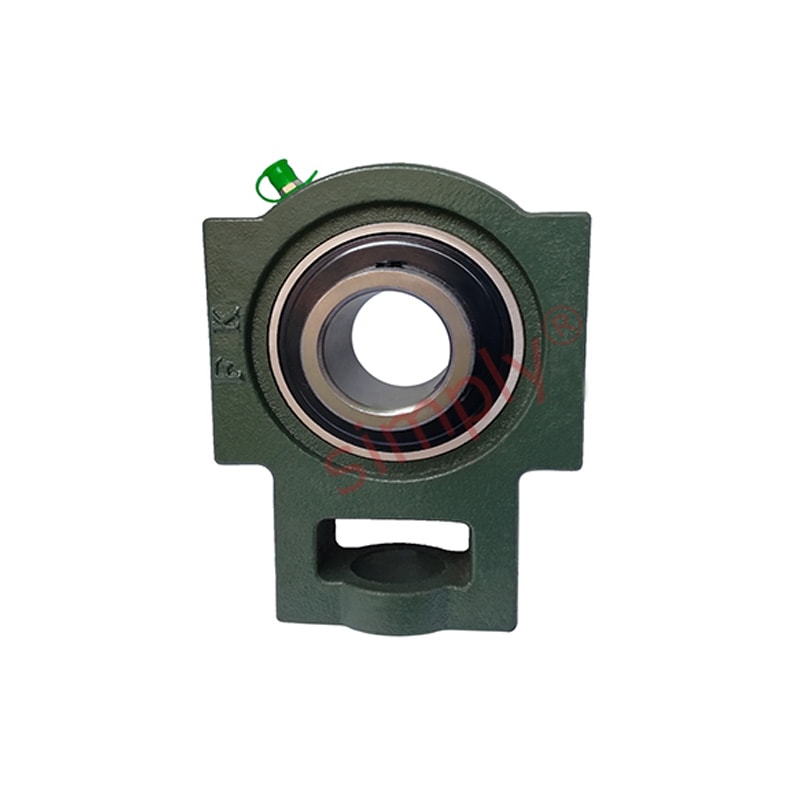

UCT317 Metric Cast Iron Take Up Unit Housing with 85mm Bore Insert
UCT317 Metric Cast Iron Take Up Unit Housing with 85mm Bore Insert
Regular price
£214.07
ex VAT£256.88inc. VAT
Regular price
Sale price
£214.07
ex VAT£256.88
inc. VAT
In stock
Price Break
3+
£190.52
4+
£179.82
9+
£177.68
19+
£175.54
49+
£173.40
99+
£171.26
499+
£160.55
999+
£158.41
1999+
£156.27
2999+
£154.13
4999+
£149.85
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Style:
- UCT
Technical
Technical
| d | 85mm |
|---|---|
| o | 42mm |
| g | 32mm |
| p | 152mm |
| q | 98mm |
| s | 53mm |
| b | 170mm |
| k | 32mm |
| e | 214mm |
| a | 240mm |
| w | 298mm |
| j | 102mm |
| l | 64mm |
| h | 183mm |
| B | 96mm |
| n | 40mm |
| Bearing no | UC317 |
| Housing no | T317 |
| Weight | 18.6 kg |
