SKU: UCT313

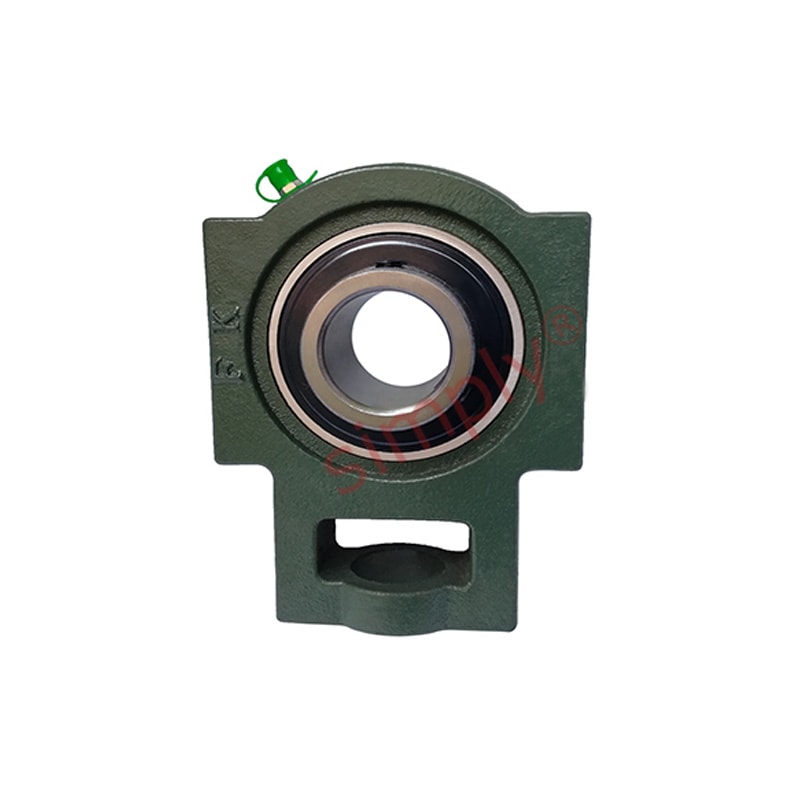

UCT313 Metric Cast Iron Take Up Unit Housing with 65mm Bore Insert
UCT313 Metric Cast Iron Take Up Unit Housing with 65mm Bore Insert
Regular price
£91.74
ex VAT£110.09inc. VAT
Regular price
Sale price
£91.74
ex VAT£110.09
inc. VAT
In stock
Price Break
3+
£81.65
4+
£77.06
9+
£76.15
19+
£75.23
49+
£74.31
99+
£73.39
499+
£68.81
999+
£67.89
1999+
£66.97
2999+
£66.05
4999+
£64.22
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 65mm
- Style:
- UCT
Technical
Technical
| d | 65mm |
|---|---|
| o | 32mm |
| g | 27mm |
| p | 116mm |
| q | 70mm |
| s | 43mm |
| b | 134mm |
| k | 26mm |
| e | 170mm |
| a | 190mm |
| w | 238mm |
| j | 80mm |
| l | 50mm |
| h | 146mm |
| B | 75mm |
| n | 30mm |
| Bearing no | UC313 |
| Housing no | T313 |
| Weight | 9.3 kg |
