SKU: UCT310

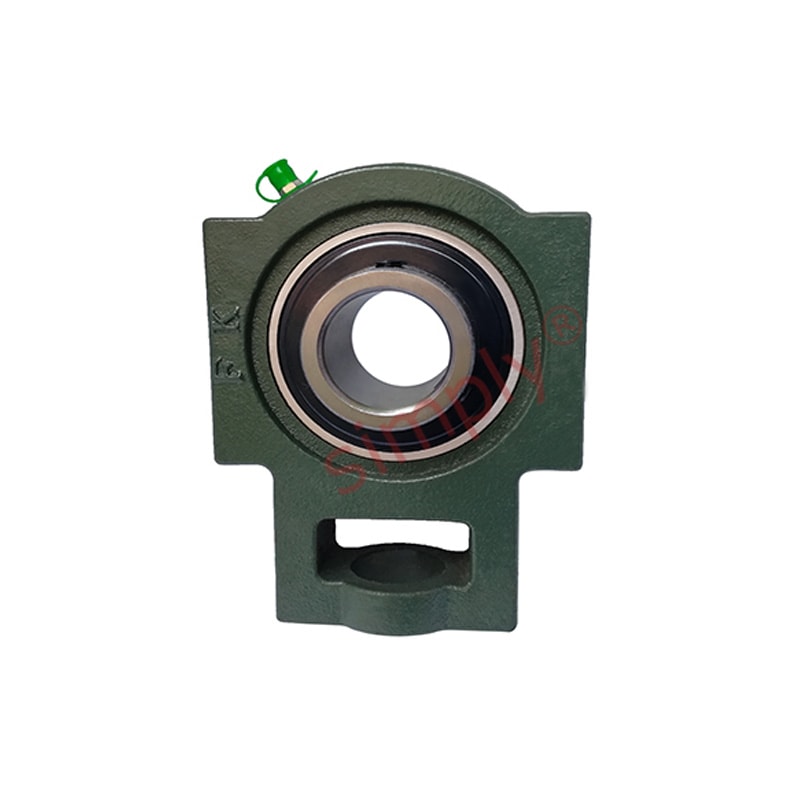

UCT310 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert
UCT310 Metric Cast Iron Take Up Unit Housing with 50mm Bore Insert
Regular price
£45.34
ex VAT£54.41inc. VAT
Regular price
Sale price
£45.34
ex VAT£54.41
inc. VAT
In stock
Price Break
10+
£40.35
19+
£38.09
29+
£37.63
39+
£37.18
49+
£36.73
74+
£36.27
99+
£34.01
199+
£33.55
249+
£33.10
499+
£32.64
999+
£31.74
Couldn't load pickup availability
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCT
Technical
Technical
| d | 50mm |
|---|---|
| o | 27mm |
| g | 22mm |
| p | 98mm |
| q | 61mm |
| s | 37mm |
| b | 106mm |
| k | 20mm |
| e | 140mm |
| a | 151mm |
| w | 192mm |
| j | 61mm |
| l | 40mm |
| h | 118mm |
| B | 61mm |
| n | 22mm |
| Bearing no | UC310 |
| Housing no | T310 |
| Weight | 5 kg |
