SKU: UCT307D1-NTN

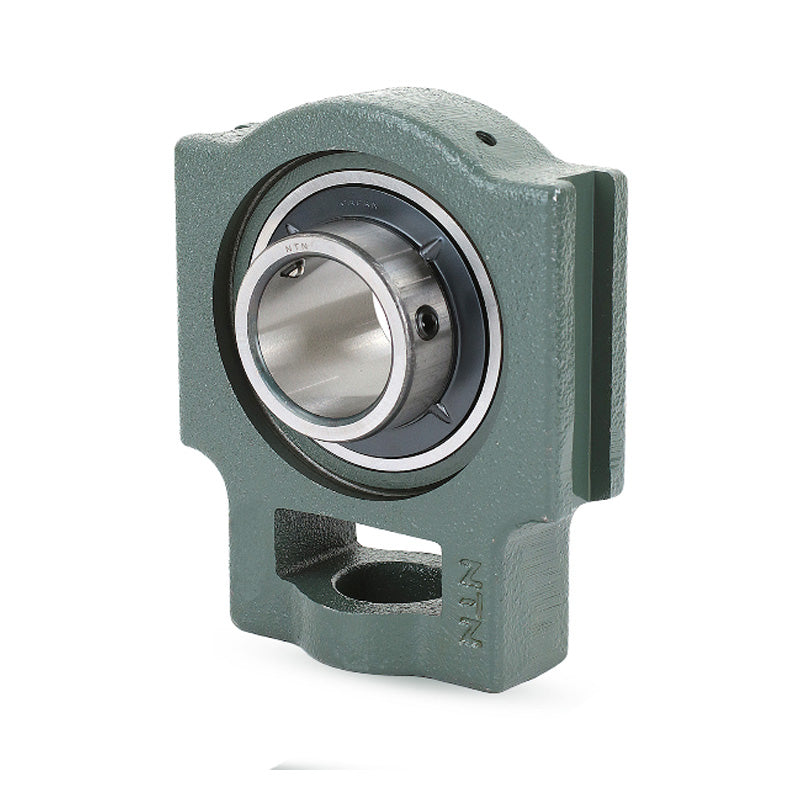

NTN UCT307D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT307D1 Metric Cast Iron Take Up Unit with 35mm Bore Bearing Unit - Allow 2-3 Days
Regular price
£66.50
ex VAT£79.80inc. VAT
Regular price
Sale price
£66.50
ex VAT£79.80
inc. VAT
In stock
Price Break
3+
£65.84
4+
£63.18
9+
£61.85
19+
£59.85
49+
£58.52
99+
£55.20
499+
£46.55
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 35mm |
| N<sub>1</sub> | 20mm |
| L<sub>2</sub> | 17mm |
| H<sub>2</sub> | 75mm |
| N<sub>2</sub> | 45mm |
| N | 30mm |
| L<sub>3</sub> | 80mm |
| A<sub>1</sub> | 16mm |
| H<sub>1</sub> | 100mm |
| H | 111mm |
| L | 150mm |
| A<sub>2</sub> | 32mm |
| A | 45mm |
| r | 56mm |
| L<sub>1</sub> | 94mm |
| B | 48mm |
| S | 19mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 37 kN |
| Static load C<sub>0r</sub> | 19.1 kN |
| Fatigue load limit C<sub>u</sub> | 1.47 kN |
| --- | Unit information |
| Mass | 2.3 kg |
