SKU: UCT307

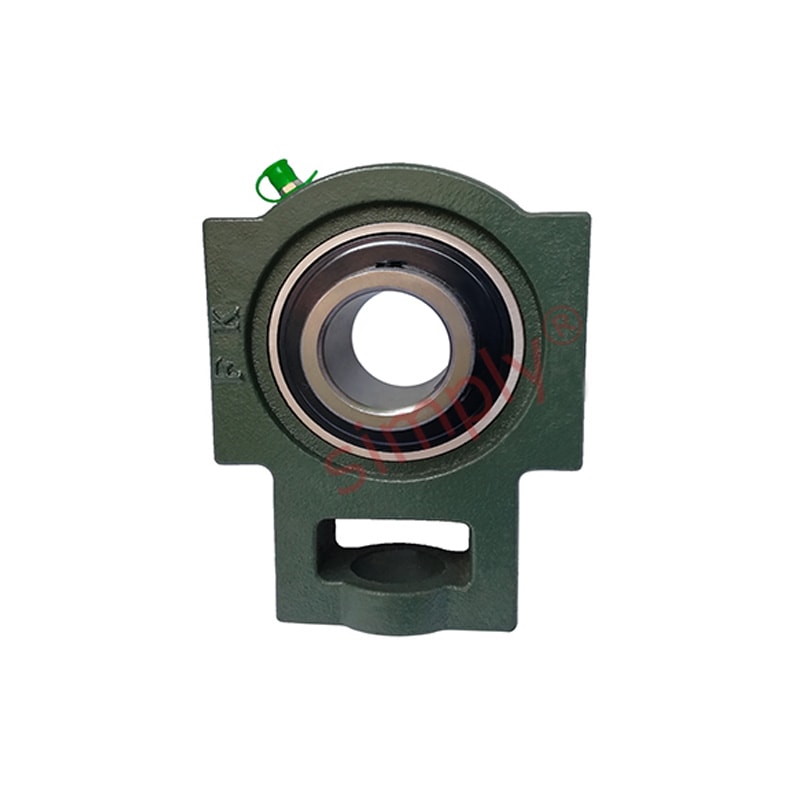

UCT307 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
UCT307 Metric Cast Iron Take Up Unit Housing with 35mm Bore Insert
Regular price
£26.72
ex VAT£32.06inc. VAT
Regular price
Sale price
£26.72
ex VAT£32.06
inc. VAT
In stock
Price Break
3+
£23.78
4+
£22.45
9+
£22.18
19+
£21.91
49+
£21.64
99+
£21.38
499+
£20.04
999+
£19.77
1999+
£19.51
2999+
£19.24
4999+
£18.71
Share this product
Description
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCT
Technical
Technical
| d | 35mm |
|---|---|
| o | 20mm |
| g | 17mm |
| p | 75mm |
| q | 45mm |
| s | 30mm |
| b | 80mm |
| k | 16mm |
| e | 100mm |
| a | 111mm |
| w | 150mm |
| j | 45mm |
| l | 32mm |
| h | 94mm |
| B | 48mm |
| n | 19mm |
| Bearing no | UC307 |
| Housing no | T307 |
| Weight | 2.3 kg |
