SKU: UCT215-SNR

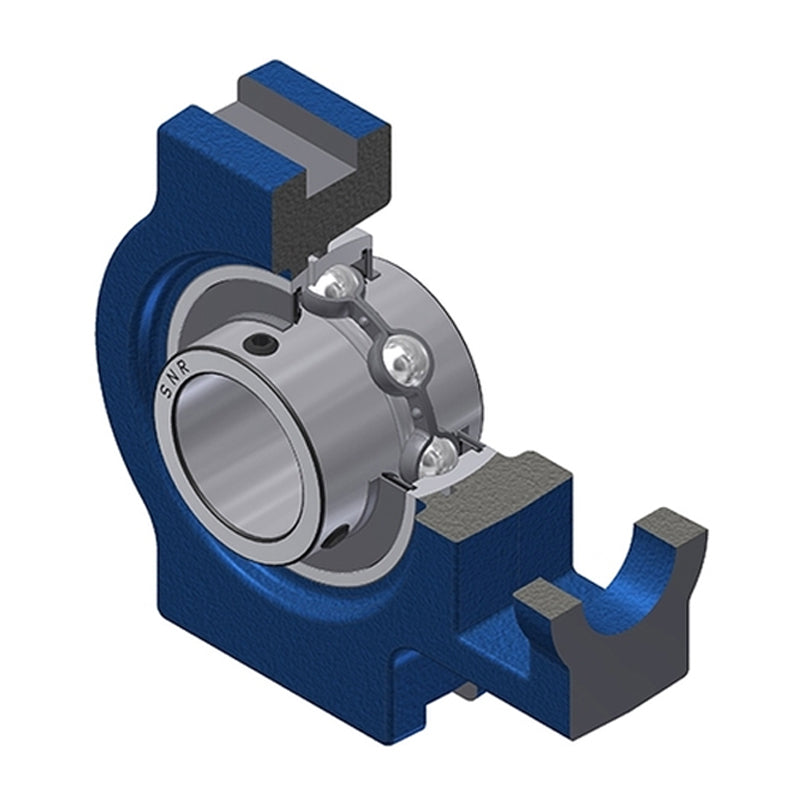

SNR UCT215 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days
SNR UCT215 Metric Cast Iron Take Up Unit with 75mm Bore Bearing Unit - Allow 2-3 Days
Regular price
£199.50
ex VAT£239.40inc. VAT
Regular price
Sale price
£199.50
ex VAT£239.40
inc. VAT
In stock
Price Break
5+
£197.51
10+
£189.53
20+
£185.54
50+
£179.55
100+
£175.56
500+
£165.59
1000+
£139.65
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 75mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 75mm |
| A | 70mm |
| A1 | 26mm |
| A2 | 48mm |
| B | 77.8mm |
| H | 167mm |
| H1 | 151mm |
| H2 | 111mm |
| L | 232mm |
| L1 | 140mm |
| L2 | 21mm |
| L3 | 121mm |
| N | 41mm |
| N1 | 32mm |
| N2 | 70mm |
| S | 33.3mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 66 kN |
| Static load C0 | 49.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 7.21 kg |
