SKU: UCT214-44-SNR

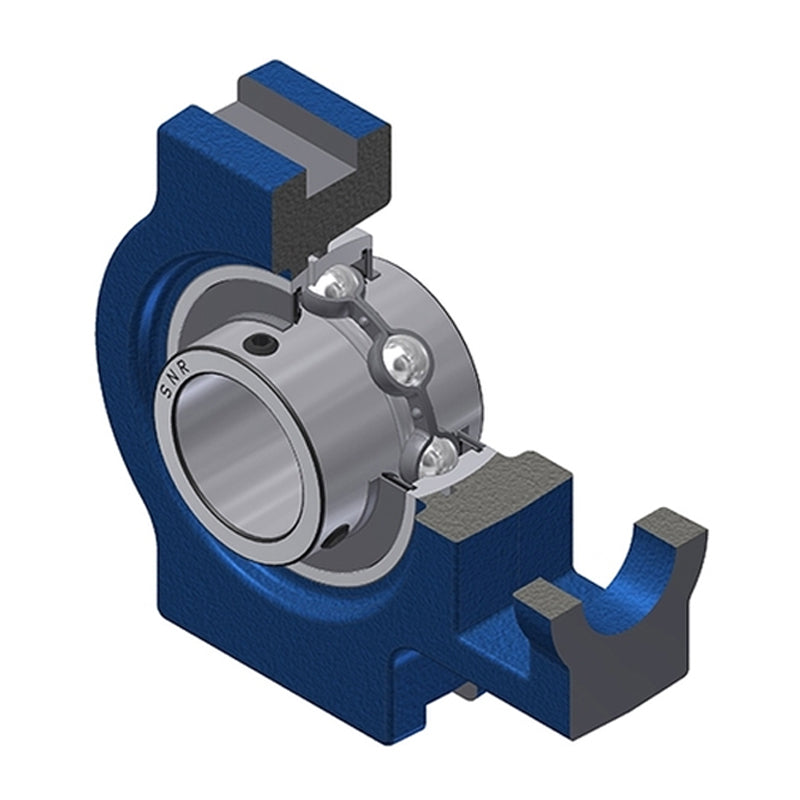

SNR UCT214-44 Imperial Cast Iron Take Up Unit with 2-3/4 inch Bore Bearing Unit - Allow 2-3 Days
SNR UCT214-44 Imperial Cast Iron Take Up Unit with 2-3/4 inch Bore Bearing Unit - Allow 2-3 Days
Regular price
£155.20
ex VAT£186.24inc. VAT
Regular price
Sale price
£155.20
ex VAT£186.24
inc. VAT
In stock
Price Break
5+
£153.65
10+
£147.44
20+
£144.34
50+
£139.68
100+
£136.58
500+
£128.82
1000+
£108.64
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 69.85mm = 2.75 (2-3/4) inch
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-3/4 inch |
| A | 70mm |
| A1 | 26mm |
| A2 | 46mm |
| B | 74.6mm |
| H | 167mm |
| H1 | 151mm |
| H2 | 111mm |
| L | 224mm |
| L1 | 137mm |
| L2 | 21mm |
| L3 | 121mm |
| N | 41mm |
| N1 | 32mm |
| N2 | 70mm |
| S | 30.2mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 6.86 kg |
