SKU: UCT203D1-NTN

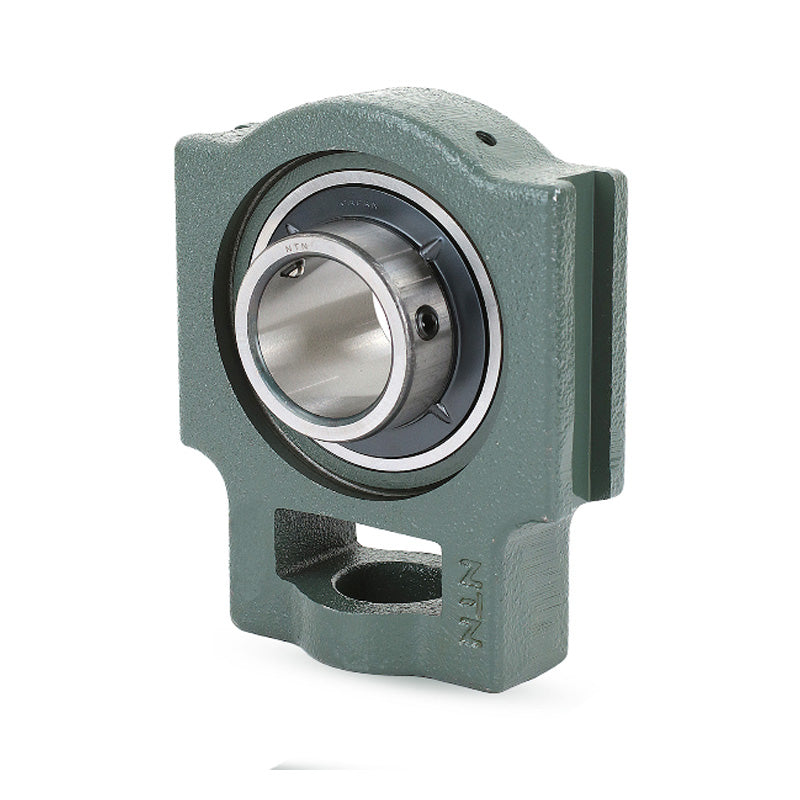

NTN UCT203D1 Metric Cast Iron Take Up Unit with 17mm Bore Bearing Unit - Allow 2-3 Days
NTN UCT203D1 Metric Cast Iron Take Up Unit with 17mm Bore Bearing Unit - Allow 2-3 Days
Regular price
£26.57
ex VAT£31.88inc. VAT
Regular price
Sale price
£26.57
ex VAT£31.88
inc. VAT
In stock
Price Break
3+
£26.30
4+
£25.24
9+
£24.71
19+
£23.91
49+
£23.38
99+
£22.05
499+
£18.60
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 17mm
- Style:
- UCT
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 17mm |
| N<sub>1</sub> | 16mm |
| L<sub>2</sub> | 12mm |
| H<sub>2</sub> | 51mm |
| N<sub>2</sub> | 32mm |
| N | 19mm |
| L<sub>3</sub> | 51mm |
| A<sub>1</sub> | 12mm |
| H<sub>1</sub> | 76mm |
| H | 89mm |
| L | 94mm |
| A<sub>2</sub> | 21mm |
| A | 32mm |
| r | 33mm |
| L<sub>1</sub> | 61mm |
| B | 31mm |
| S | 12.7mm |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 0.6 kg |
