SKU: UCT.211.TS.CHAL

Challenge / FK UCT211 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT211 Metric Cast Iron Take Up Unit Housing with 55mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price £96.35 ex VAT£115.62inc. VAT
Regular price Sale price £96.35 ex VAT£115.62 inc. VAT
Sale Sold out

Equivalent to: UCT.211

In stock

Price Break
3+ £85.75
5+ £80.94
9+ £79.97
19+ £79.01
49+ £78.05
74+ £77.08
99+ £72.27
199+ £71.30
249+ £70.34
499+ £69.37
999+ £67.45
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

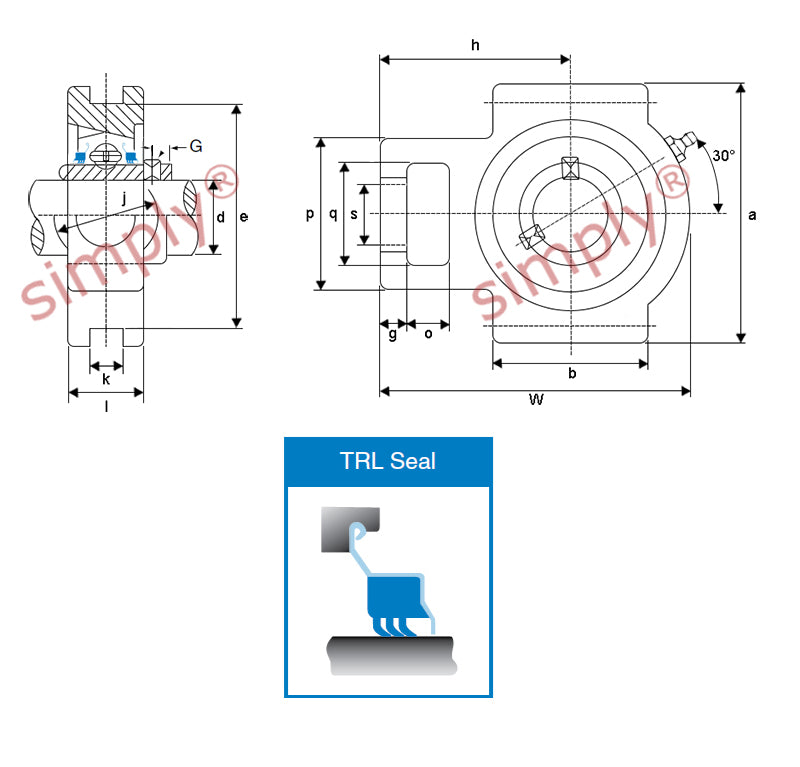

Shaft Diameter d 55mm
Nut Slot Width o 25mm
Distance g 19mm
Dimention p 102mm
Dimention q 64mm
Hole s 35mm
Dimention b 95mm
Slot Width k 22mm
Distance Between Slots e 130mm
Overall Casting Depth a 146mm
Width w 171mm
Diameter j 64mm
Casting Width at Slots l 41mm
Dimension h 106mm
Grub Screws x 2 M10X1.25
Load Rating (Dynamic) 3400kg
Load Rating (Static) 2550kg
Max Speed 1600 rev/min
Grease Nipple Thread Size M8
Working Temperature -30°C to +120°C
Insert No UC211
Housing No T211
