SKU: UCT.206.TS.CHAL

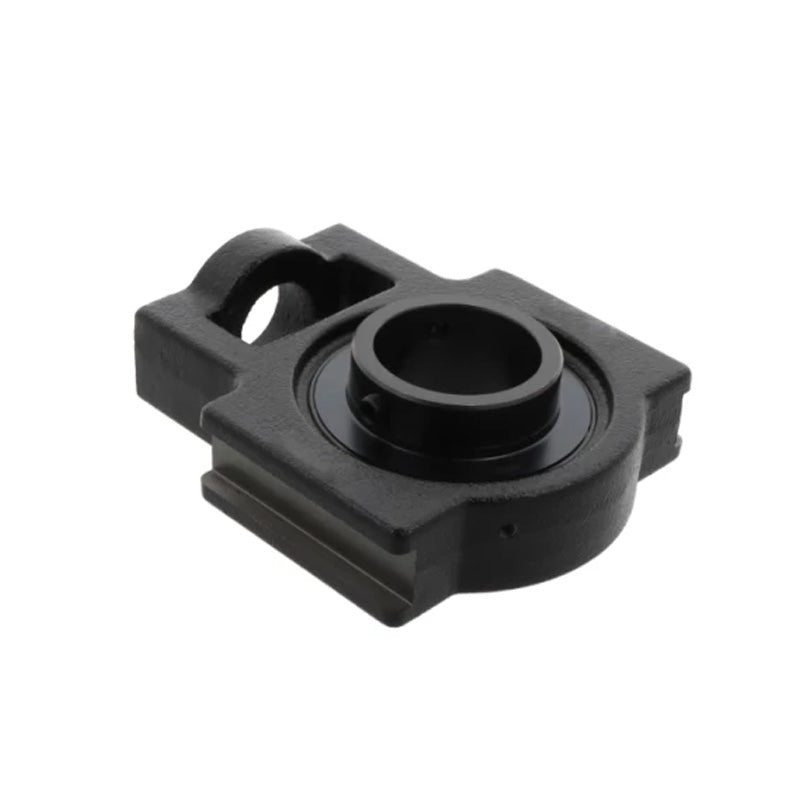

Challenge / FK UCT206 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use

Challenge / FK UCT206 Metric Cast Iron Take Up Unit Housing with 30mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
Regular price £34.25 ex VAT£41.10inc. VAT
Regular price Sale price £34.25 ex VAT£41.10 inc. VAT
Sale Sold out

Equivalent to: UCT.206

In stock

Price Break
3+ £30.49
5+ £28.77
9+ £28.43
19+ £28.09
49+ £27.74
74+ £27.40
99+ £25.69
199+ £25.35
249+ £25.00
499+ £24.66
999+ £23.98
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Shaft Diameter d 30mm
Nut Slot Width o 16mm
Distance g 10mm
Dimention p 56mm
Dimention q 37mm
Hole s 22mm
Dimention b 57mm
Slot Width k 12mm
Distance Between Slots e 89mm
Overall Casting Depth a 102mm
Width w 113mm
Diameter j 37mm
Casting Width at Slots l 28mm
Dimension h 70mm
Grub Screws x 2 M6x0.75
Load Rating (Dynamic) 1520kg
Load Rating (Static) 1020kg
Max Speed 2800 rev/min
Grease Nipple Thread Size M6
Working Temperature -30°C to +120°C
Insert No UC206
Housing No T206
