SKU: UCT.206-19

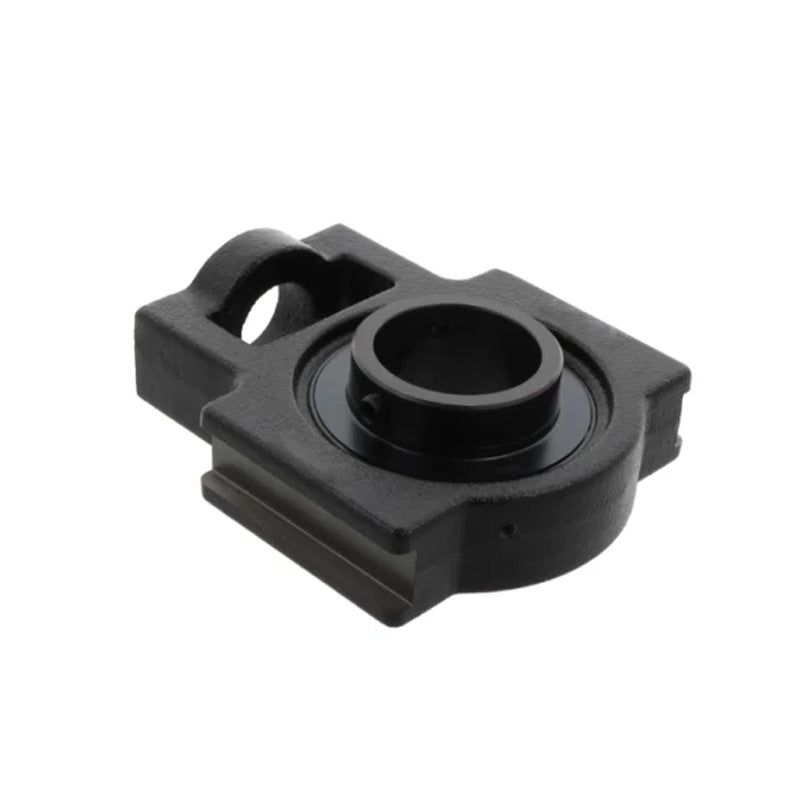

UCT206-19 Metric Series Cast Iron Take Up Unit Housing with 1-3/16 inch Bore Bearing Unit
UCT206-19 Metric Series Cast Iron Take Up Unit Housing with 1-3/16 inch Bore Bearing Unit
Regular price
£8.51
ex VAT£10.21inc. VAT
Regular price
Sale price
£8.51
ex VAT£10.21
inc. VAT
In stock
Price Break
3+
£7.57
4+
£7.15
9+
£7.06
19+
£6.98
49+
£6.89
99+
£6.81
499+
£6.38
999+
£6.30
1999+
£6.21
2999+
£6.13
4999+
£5.96
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- UCT
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 56mm |
| q | 37mm |
| s | 22mm |
| b | 57mm |
| k | 12mm |
| e | 89mm |
| a | 102mm |
| W | 113mm |
| j | 37mm |
| L | 28mm |
| h | 70mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Weight | 1.3 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
