SKU: UCT.205-16

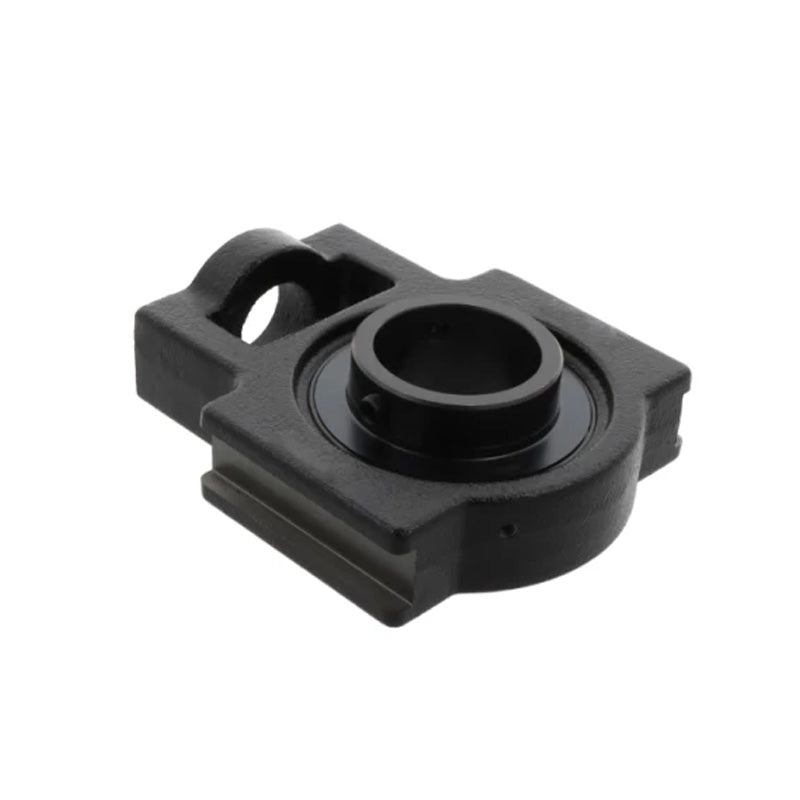

UCT205-16 Metric Series Cast Iron Take Up Unit Housing with 1 inch Bore Bearing Unit
UCT205-16 Metric Series Cast Iron Take Up Unit Housing with 1 inch Bore Bearing Unit
Regular price
£8.90
ex VAT£10.68inc. VAT
Regular price
Sale price
£8.90
ex VAT£10.68
inc. VAT
Equivalent to: ST1
In stock
Price Break
10+
£7.92
19+
£7.48
29+
£7.39
39+
£7.30
49+
£7.21
74+
£7.12
99+
£6.68
199+
£6.59
249+
£6.50
499+
£6.41
999+
£6.23
Couldn't load pickup availability
Description
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: ST1
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- UCT
Technical
Technical
| d | 1 inch |
|---|---|
| o | 16mm |
| g | 10mm |
| p | 51mm |
| q | 32mm |
| s | 19.mm |
| b | 51mm |
| k | 12mm |
| e | 76mm |
| a | 89mm |
| W | 97mm |
| j | 32mm |
| L | 24mm |
| h | 62mm |
| Bi | 34mm |
| n | 14.3mm |
| Weight | 0.83 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
