SKU: UCPX13D1-NTN

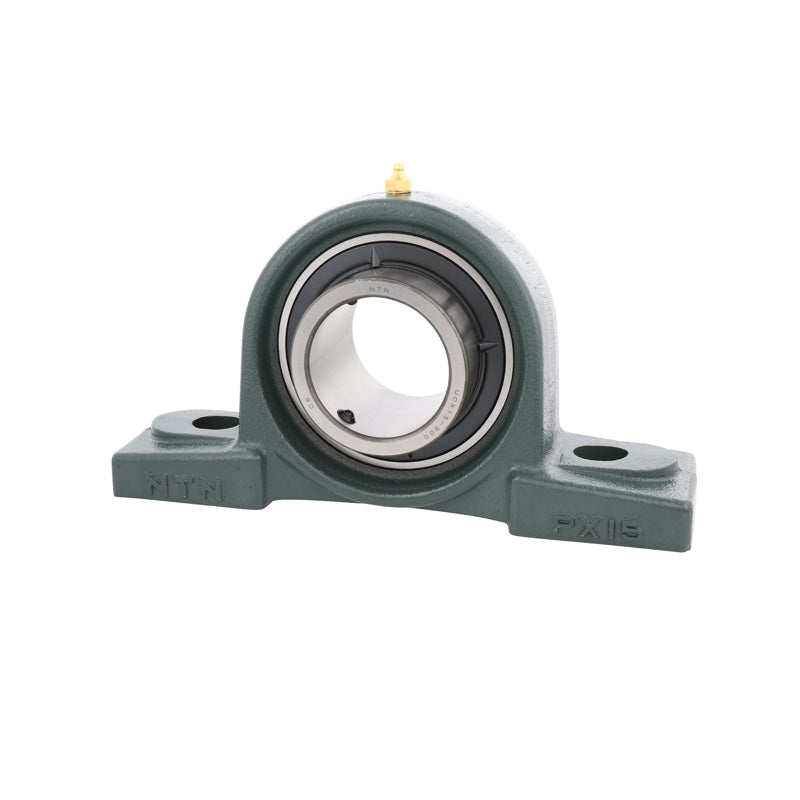

NTN UCPX13D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
NTN UCPX13D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price
£105.90
ex VAT£127.08inc. VAT
Regular price
Sale price
£105.90
ex VAT£127.08
inc. VAT
In stock
Price Break
3+
£94.25
4+
£88.96
9+
£87.90
19+
£86.84
49+
£85.78
99+
£84.72
499+
£79.43
999+
£78.37
1999+
£77.31
2999+
£76.25
4999+
£74.13
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCPX
- Bolt Hole Centres:
- 203mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| H | 76.2mm |
| L | 286mm |
| J | 203mm |
| A | 83mm |
| N | 25mm |
| N<sub>1</sub> | 28mm |
| H<sub>1</sub> | 33mm |
| H<sub>2</sub> | 154mm |
| L<sub>1</sub> | 80mm |
| B | 74.6mm |
| S | 30.2mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 69 kN |
| Static load C<sub>0r</sub> | 44 kN |
| Fatigue load limit C<sub>u</sub> | 3.45 kN |
| --- | Unit information |
| Mass | 7.1 kg |
