SKU: UCPW207

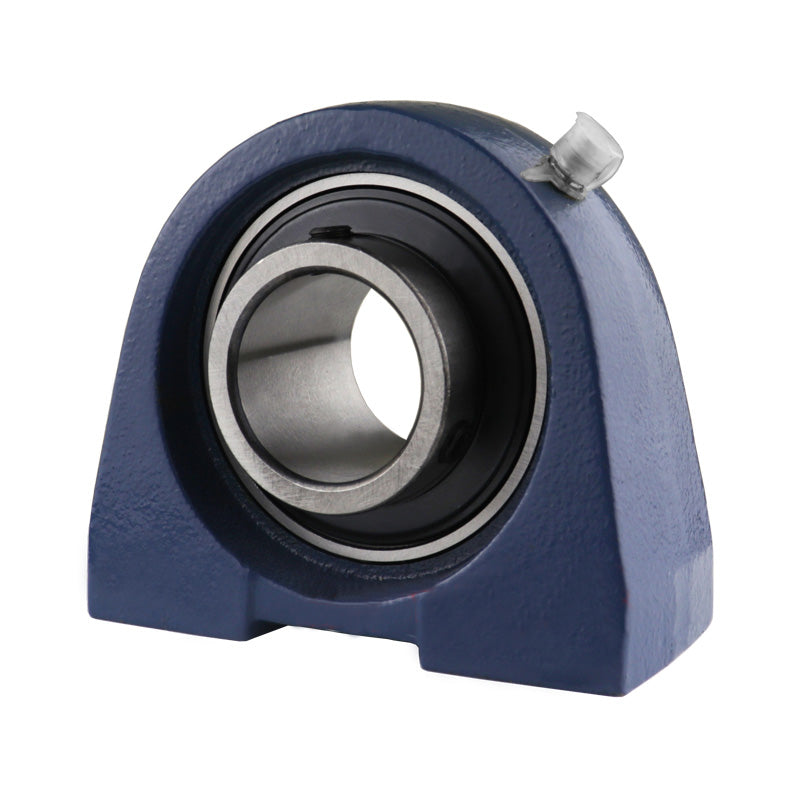

UCPW207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Insert
UCPW207 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Insert
Regular price
£19.45
ex VAT£23.34inc. VAT
Regular price
Sale price
£19.45
ex VAT£23.34
inc. VAT
Low stock
Price Break
3+
£17.31
4+
£16.34
9+
£16.15
19+
£15.95
49+
£15.76
99+
£15.56
499+
£14.59
999+
£14.40
1999+
£14.20
2999+
£14.01
4999+
£13.62
Share this product
Description
Description
UCPW200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Style:
- UCPW
- Bolt Hole Centres:
- 127mm
Technical
Technical
| d | 35mm |
|---|---|
| h | 95mm |
| a | 166mm |
| e | 127mm |
| b | 60mm |
| s1 | 17mm |
| s2 | 21mm |
| g | 18mm |
| w | 140mm |
| B | 42.9mm |
| n | 17.5mm |
| Bolt size | M14 |
| Bearing no | UC207 |
| Housing no | PW207 |
| Weight | 1.83 kg |
