SKU: UCPLE210-SNR

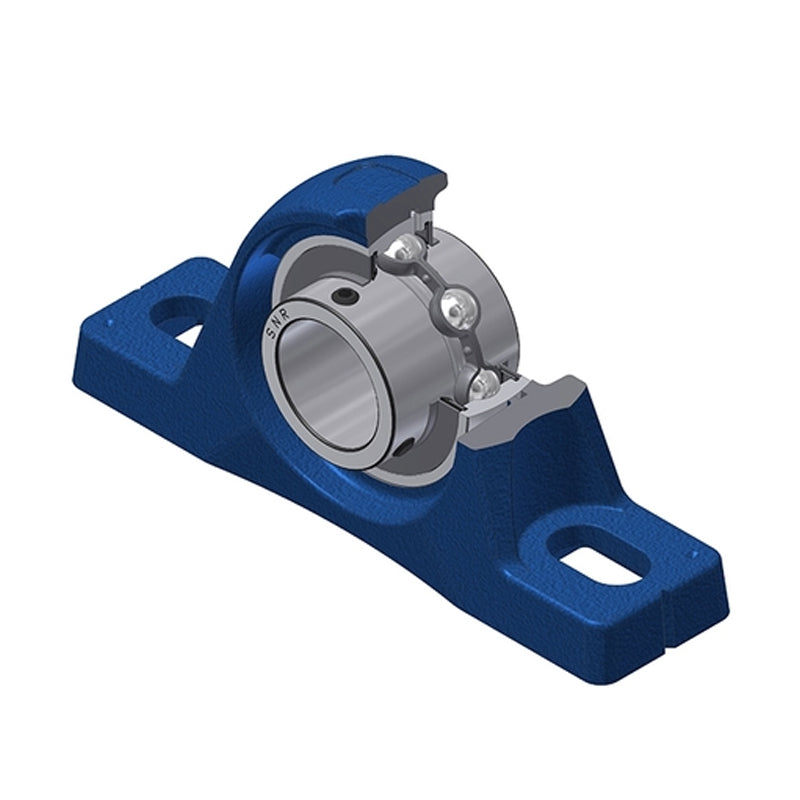

SNR UCPLE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days

SNR UCPLE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price £55.36 ex VAT£66.43inc. VAT
Regular price Sale price £55.36 ex VAT£66.43 inc. VAT
Sale Sold out

In stock

Price Break
3+ £54.81
4+ £52.59
9+ £51.48
19+ £49.82
49+ £48.72
99+ £45.95
499+ £38.75
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 55mm
A1 36mm
B 51.6mm
H 55.6mm
H1 19.3mm
H2 114mm
J 164mm
L 214mm
N 14mm
N1 27mm
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.9 kg
