SKU: UCPLE206-SNR

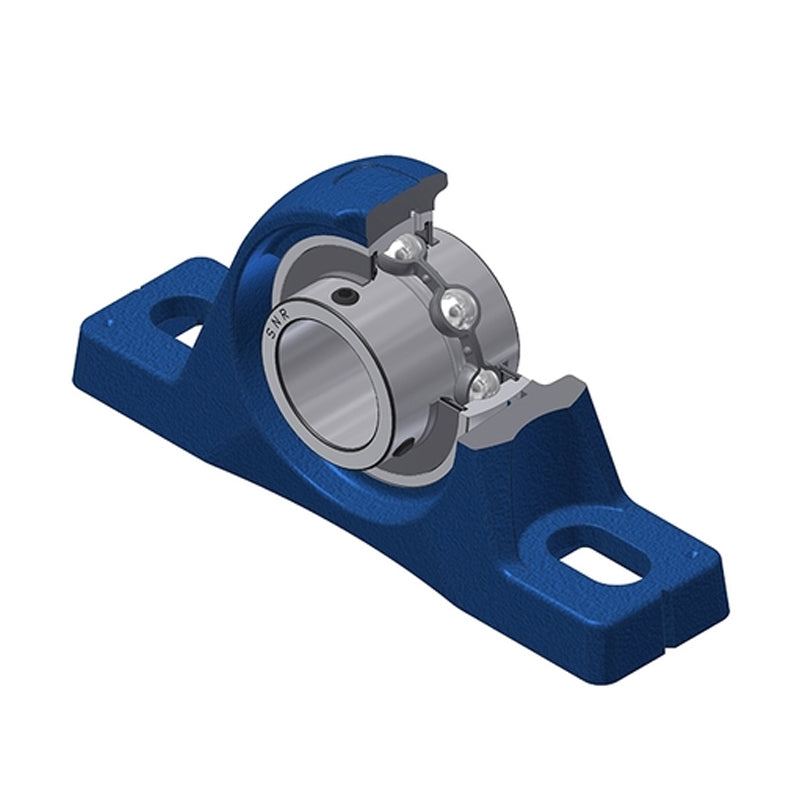

SNR UCPLE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days

SNR UCPLE206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price £25.70 ex VAT£30.84inc. VAT
Regular price Sale price £25.70 ex VAT£30.84 inc. VAT
Sale Sold out

In stock

Price Break
3+ £22.88
4+ £21.59
9+ £21.33
19+ £21.08
49+ £20.82
99+ £20.56
499+ £19.28
999+ £19.02
1999+ £18.76
2999+ £18.51
4999+ £17.99
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 30mm
A 41.5mm
A1 27.5mm
B 38.1mm
H 39.7mm
H1 14.5mm
H2 79.5mm
J 119mm
L 161.5mm
N 14mm
N1 24.5mm
S 15.9mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.12 kg
