SKU: UCPLE205N-SNR

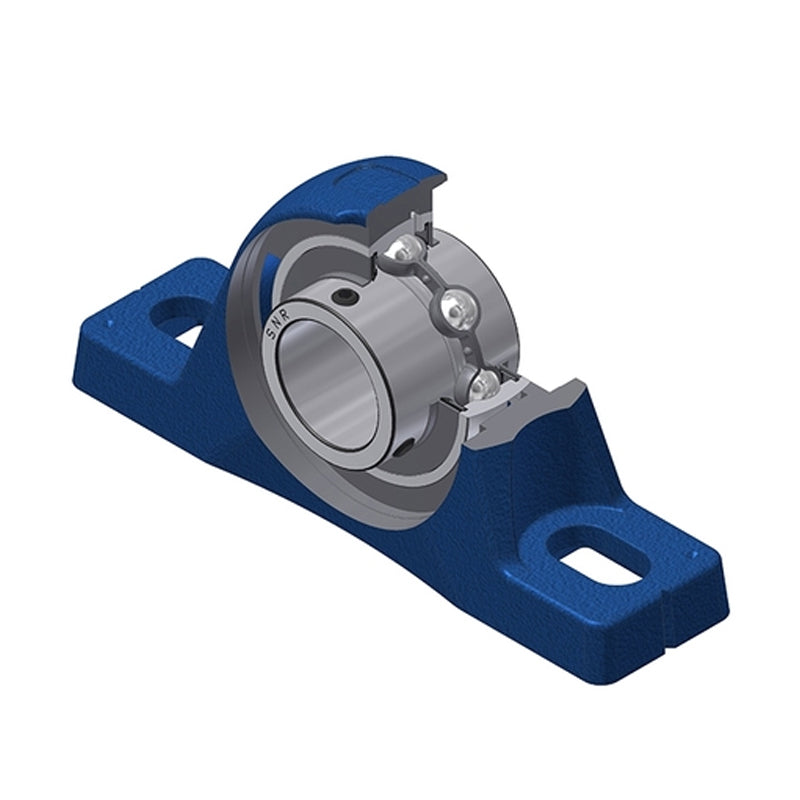

SNR UCPLE205N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days

SNR UCPLE205N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
Regular price £155.08 ex VAT£186.10inc. VAT
Regular price Sale price £155.08 ex VAT£186.10 inc. VAT
Sale Sold out

In stock

Price Break
3+ £153.53
4+ £147.33
9+ £144.22
19+ £139.57
49+ £136.47
99+ £128.72
499+ £108.56
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 25mm
A 36.5mm
A1 24.5mm
B 34mm
H 33.3mm
H1 12.8mm
H2 67.8mm
J 104.2mm
L 139mm
N 11mm
N1 17mm
S 14.3mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.61 kg
