SKU: UCPH210-SNR

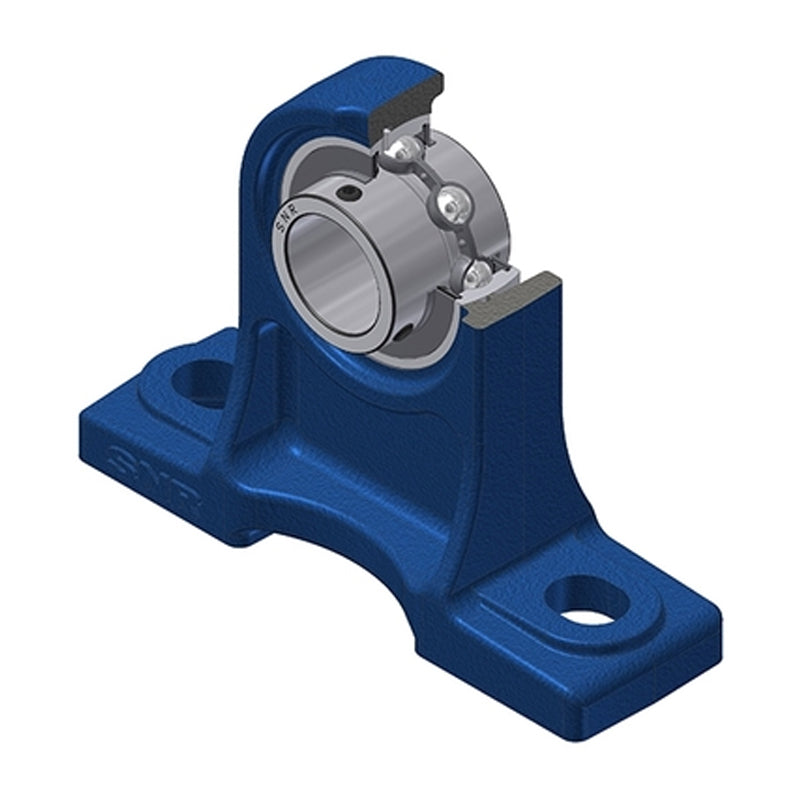

SNR UCPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
SNR UCPH210 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
£48.20
ex VAT£57.84inc. VAT
Regular price
Sale price
£48.20
ex VAT£57.84
inc. VAT
In stock
Price Break
10+
£42.90
19+
£40.49
29+
£40.01
39+
£39.52
49+
£39.04
74+
£38.56
99+
£36.15
199+
£35.67
249+
£35.19
499+
£34.70
999+
£33.74
Couldn't load pickup availability
Description
Description
UCHP/UCPH Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCPH
- Bolt Hole Centres:
- 51.6mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 70mm |
| A1 | 36mm |
| B | 51.6mm |
| H | 110mm |
| H1 | 22mm |
| H2 | 165mm |
| J | 159mm |
| L | 206mm |
| L1 | 65mm |
| N | 20mm |
| N1 | 25mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.6 kg |
