SKU: UCPH209-SNR

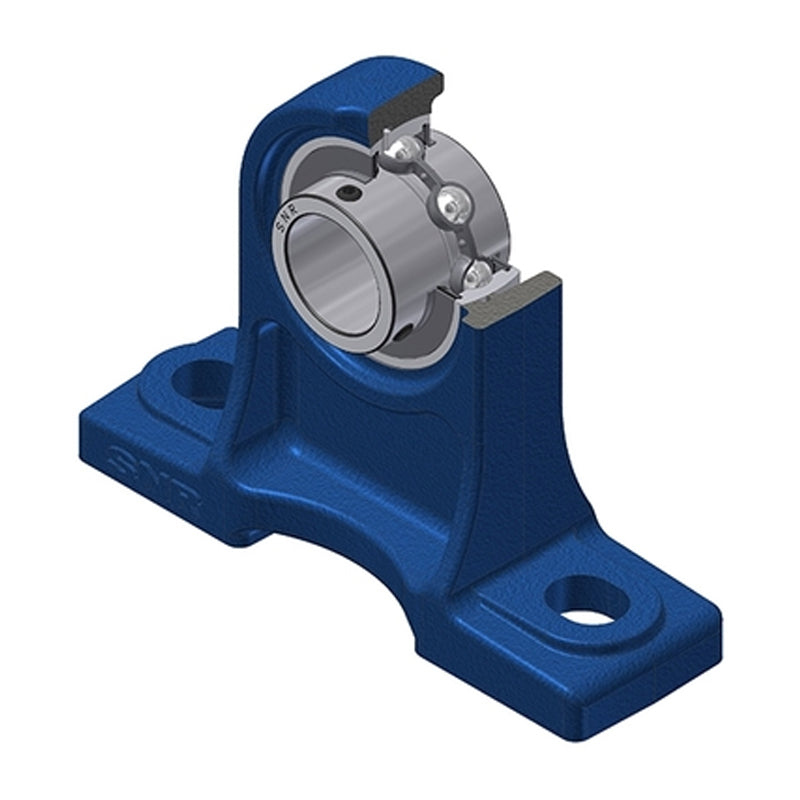

SNR UCPH209 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
SNR UCPH209 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
Regular price
£40.48
ex VAT£48.58inc. VAT
Regular price
Sale price
£40.48
ex VAT£48.58
inc. VAT
In stock
Price Break
10+
£36.03
19+
£34.00
29+
£33.60
39+
£33.19
49+
£32.79
74+
£32.38
99+
£30.36
199+
£29.96
249+
£29.55
499+
£29.15
999+
£28.34
Couldn't load pickup availability
Description
Description
UCHP/UCPH Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCPH
- Bolt Hole Centres:
- 49.2mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| A | 70mm |
| A1 | 36mm |
| B | 49.2mm |
| H | 105mm |
| H1 | 20mm |
| H2 | 157mm |
| J | 146mm |
| L | 190mm |
| L1 | 62mm |
| N | 17mm |
| N1 | 25mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 3.08 kg |
