SKU: UCPH206

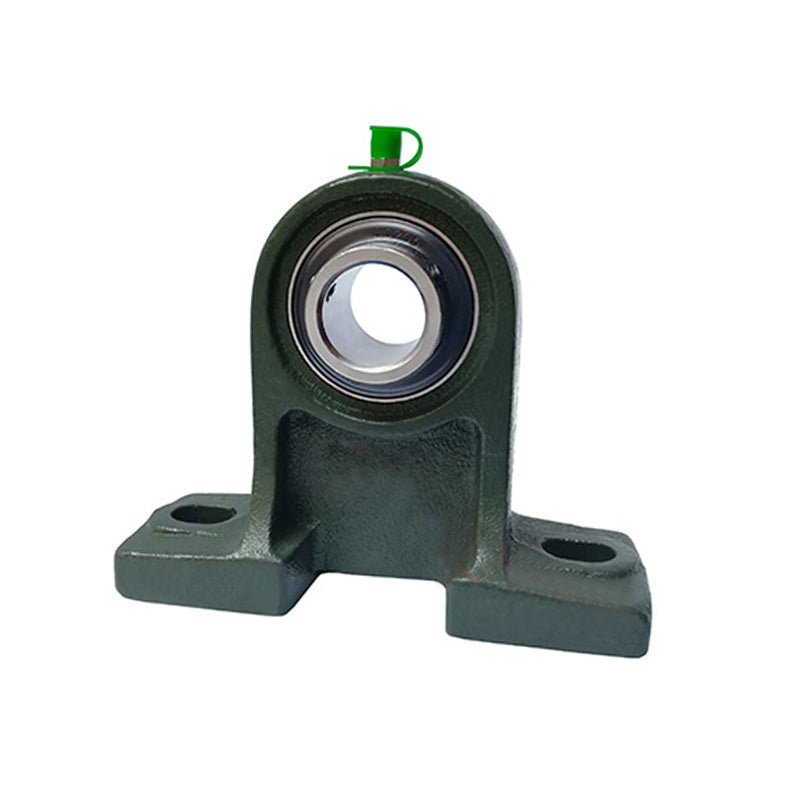

UCPH206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Insert
UCPH206 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 30mm Insert
Regular price
£11.73
ex VAT£14.08inc. VAT
Regular price
Sale price
£11.73
ex VAT£14.08
inc. VAT
In stock
Price Break
10+
£10.44
19+
£9.85
29+
£9.74
39+
£9.62
49+
£9.50
74+
£9.38
99+
£8.80
199+
£8.68
249+
£8.56
499+
£8.45
999+
£8.21
Couldn't load pickup availability
Description
Description
UCPH200 Series Normal Duty 2 Bolt Pillow Block Housings with Setscrews: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has a wide inner ring and 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Style:
- UCPH
- Bolt Hole Centres:
- 121mm
Technical
Technical
| d | 30mm |
|---|---|
| h | 90mm |
| a | 161mm |
| e | 121mm |
| b | 50mm |
| s1 | 17mm |
| s2 | 21mm |
| g | 17mm |
| w | 130mm |
| B | 38.1mm |
| n | 15.9mm |
| Bolt size | M14 |
| Bearing no | UC206 |
| Housing no | PH206 |
| Weight | 1.45 kg |
