SKU: UCPG212-SNR

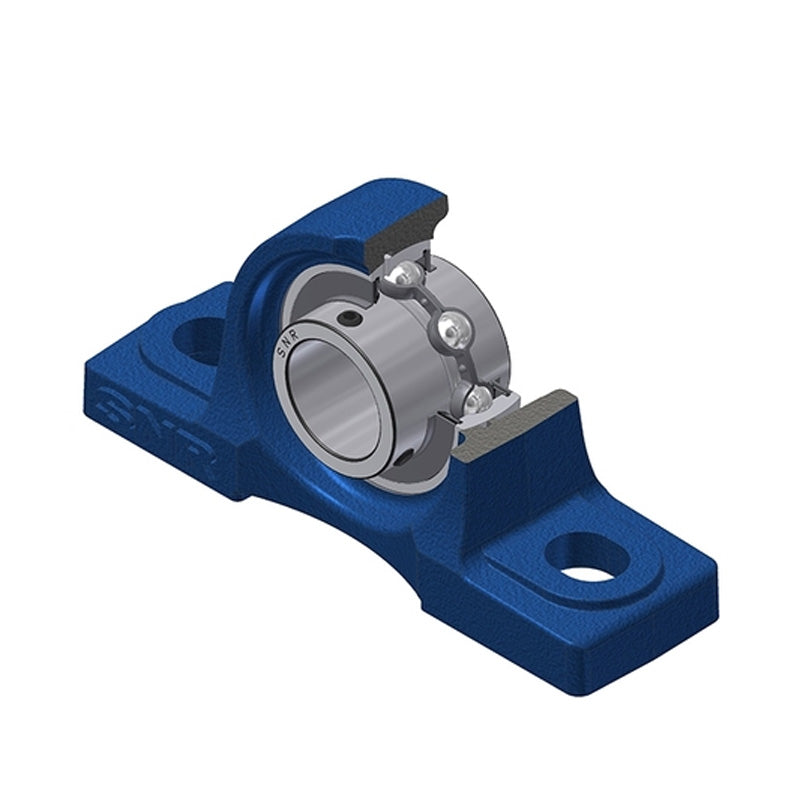

SNR UCPG212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days

SNR UCPG212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price £68.06 ex VAT£81.67inc. VAT
Regular price Sale price £68.06 ex VAT£81.67 inc. VAT
Sale Sold out

In stock

Price Break
3+ £60.58
4+ £57.17
9+ £56.49
19+ £55.81
49+ £55.13
99+ £54.45
499+ £51.05
999+ £50.37
1999+ £49.69
2999+ £49.01
4999+ £47.65
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

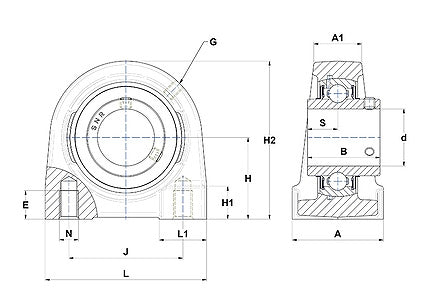

--- Dimensions
Shaft diameter 60mm
A 70mm
A1 40mm
B 65.1mm
E 25mm
H 69.8mm
H1 25mm
H2 138mm
J 105mm
L 150mm
L1 50mm
N M16
S 25.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.63 kg
