SKU: UCPG210N-SNR

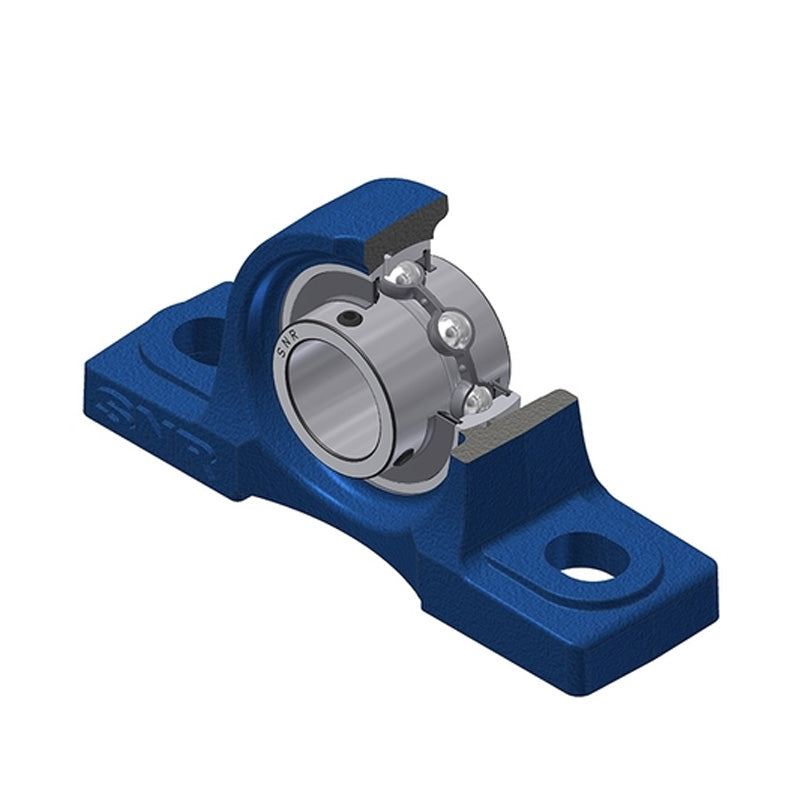

SNR UCPG210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days

SNR UCPG210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price £58.31 ex VAT£69.97inc. VAT
Regular price Sale price £58.31 ex VAT£69.97 inc. VAT
Sale Sold out

In stock

Price Break
3+ £51.90
4+ £48.98
9+ £48.40
19+ £47.82
49+ £47.23
99+ £46.65
499+ £43.74
999+ £43.15
1999+ £42.57
2999+ £41.99
4999+ £40.82
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 60mm
A1 35mm
B 51.6mm
E 25mm
H 57.2mm
H1 21mm
H2 114mm
J 95mm
L 135mm
L1 40mm
N M16
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.7 kg
