SKU: UCPG210L3-SNR

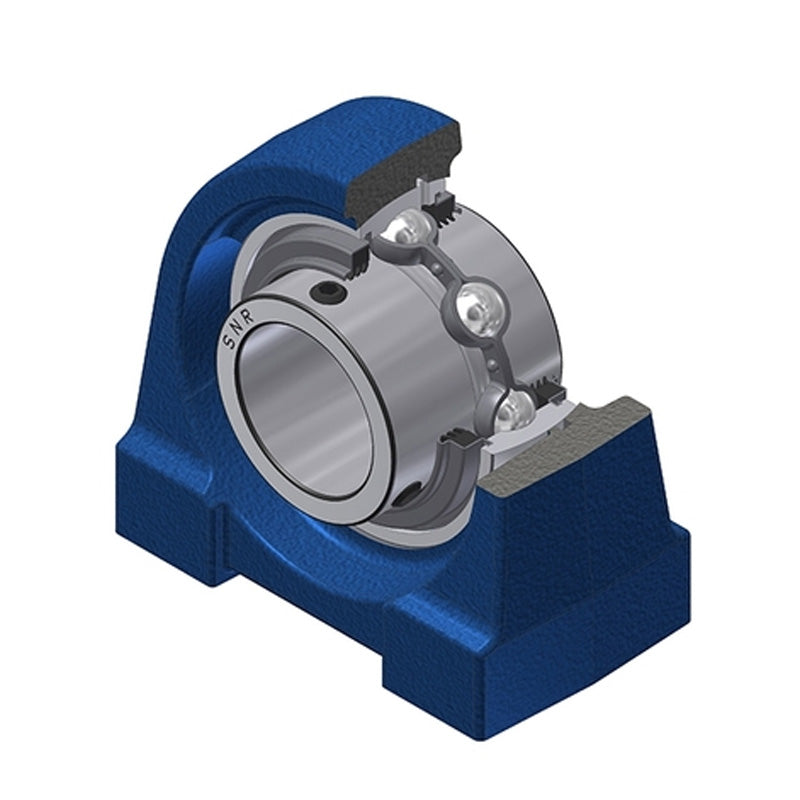

SNR UCPG210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days

SNR UCPG210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price £77.55 ex VAT£93.06inc. VAT
Regular price Sale price £77.55 ex VAT£93.06 inc. VAT
Sale Sold out

In stock

Price Break
3+ £76.77
4+ £73.67
9+ £72.12
19+ £69.80
49+ £68.24
99+ £64.37
499+ £54.29
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

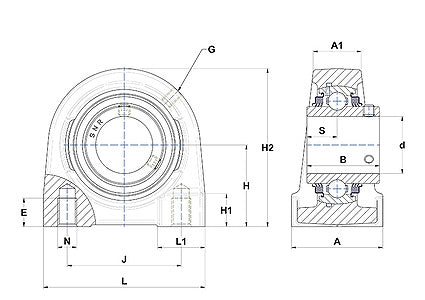

--- Dimensions
Shaft diameter 50mm
A 60mm
A1 35mm
B 51.6mm
E 25mm
H 57.2mm
H1 21mm
H2 114mm
J 95mm
L 135mm
L1 40mm
N M16
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.8 kg
