SKU: UCPG210-SNR

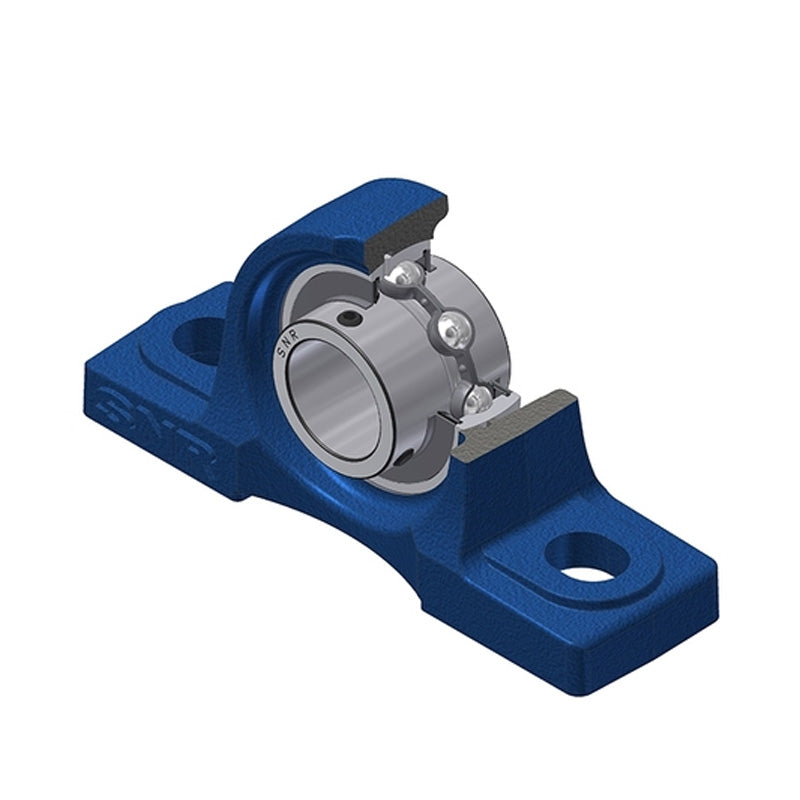

SNR UCPG210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
SNR UCPG210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
Regular price
£46.27
ex VAT£55.52inc. VAT
Regular price
Sale price
£46.27
ex VAT£55.52
inc. VAT
In stock
Price Break
3+
£41.18
4+
£38.86
9+
£38.40
19+
£37.94
49+
£37.48
99+
£37.01
499+
£34.70
999+
£34.24
1999+
£33.78
2999+
£33.31
4999+
£32.39
Share this product
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCPG
- Bolt Hole Centres:
- 95mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 60mm |
| A1 | 35mm |
| B | 51.6mm |
| E | 25mm |
| H | 57.2mm |
| H1 | 21mm |
| H2 | 114mm |
| J | 95mm |
| L | 135mm |
| L1 | 40mm |
| N | M16 |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 2.8 kg |
