SKU: UCPE212-36N-SNR

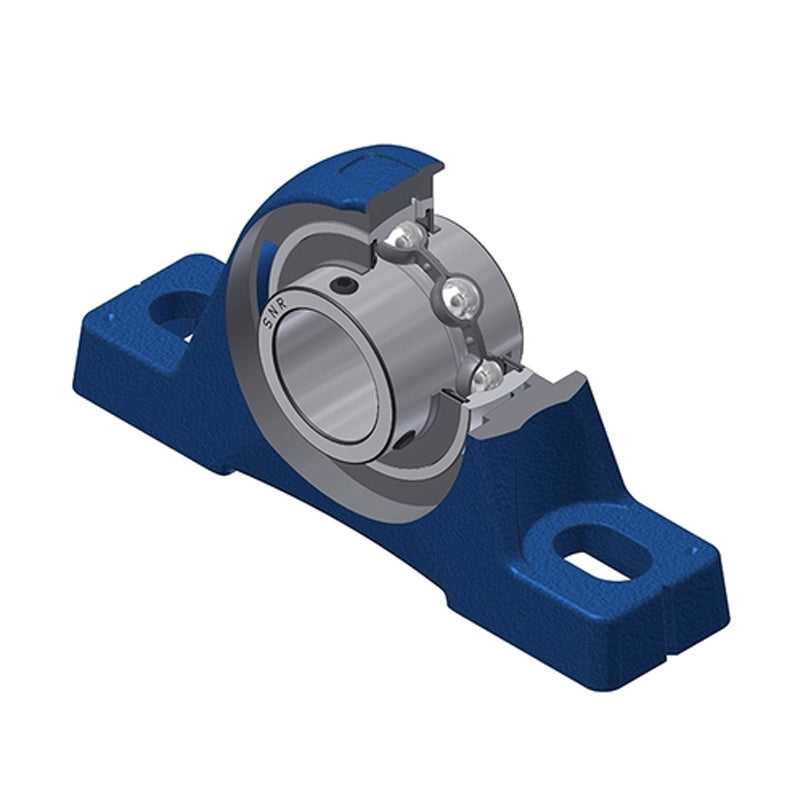

SNR UCPE212-36N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days
SNR UCPE212-36N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days
Regular price
£110.79
ex VAT£132.95inc. VAT
Regular price
Sale price
£110.79
ex VAT£132.95
inc. VAT
In stock
Price Break
5+
£109.68
10+
£105.25
20+
£103.03
50+
£99.71
100+
£97.50
500+
£91.96
1000+
£77.55
Couldn't load pickup availability
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Style:
- UCPE
- Bolt Hole Centres:
- 190mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 2-1/4mm |
| A | 60mm |
| A1 | 42mm |
| B | 65.1mm |
| H | 69.9mm |
| H1 | 25mm |
| H2 | 140mm |
| J | 190mm |
| L | 240mm |
| L1 | 71mm |
| N | 18mm |
| N1 | 28mm |
| S | 25.4mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 4.87 kg |
