SKU: UCPE210CC-SNR

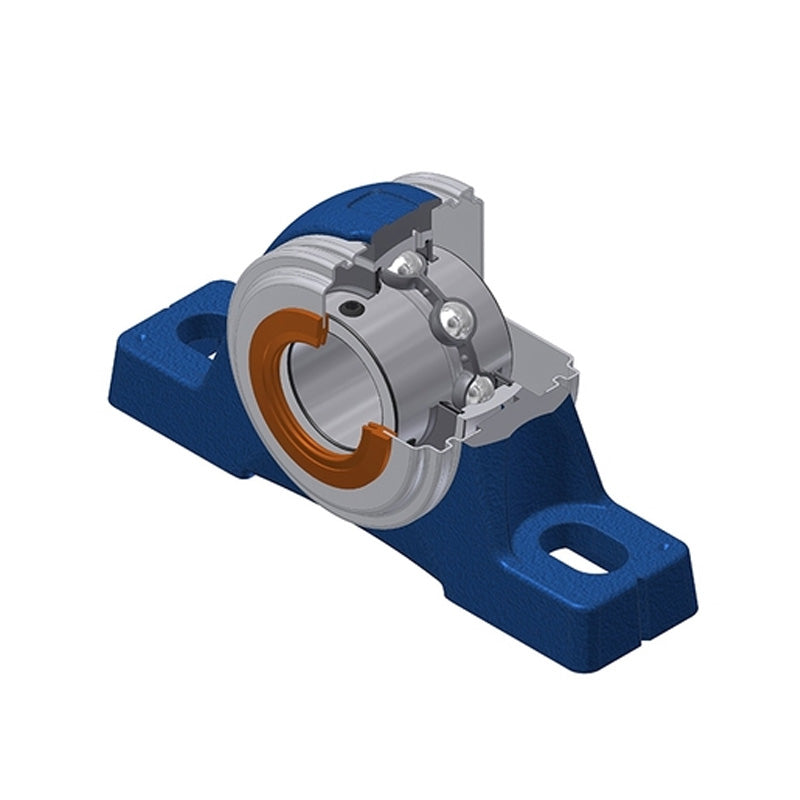

SNR UCPE210CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPE210CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price £88.67 ex VAT£106.40inc. VAT
Regular price Sale price £88.67 ex VAT£106.40 inc. VAT
Sale Sold out

In stock

Price Break
3+ £87.78
4+ £84.24
9+ £82.46
19+ £79.80
49+ £78.03
99+ £73.60
499+ £62.07
999+ £0.00
1999+ £0.00
2999+ £0.00
4999+ £0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 51.6mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 19mm
Dz 100mm
Z 76.1mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.83 kg
