SKU: UCPA.210-30

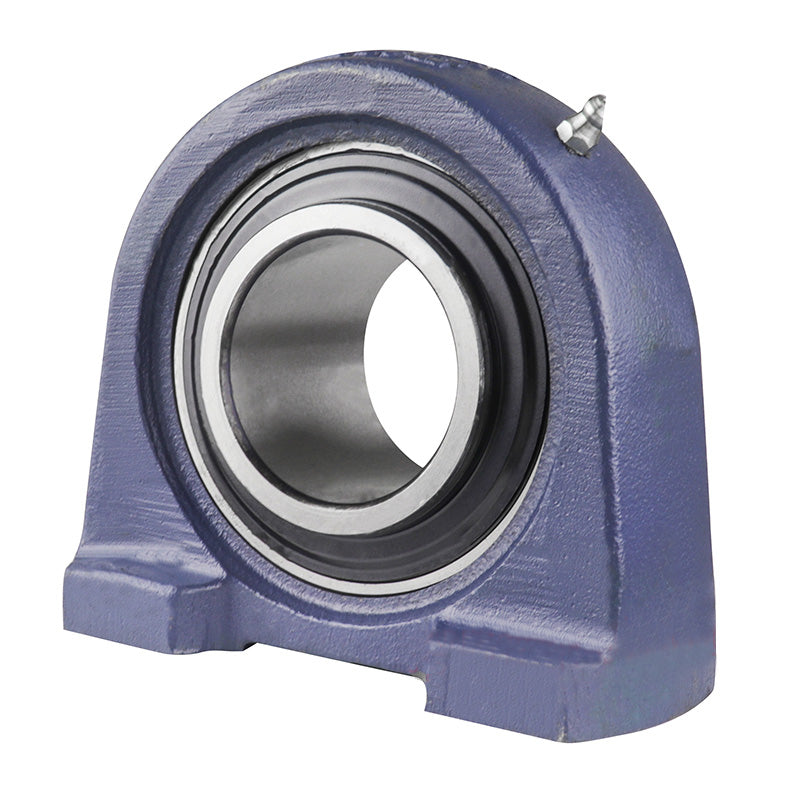

UCPA210-30 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-7/8 inch Bore Insert
UCPA210-30 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-7/8 inch Bore Insert
Regular price
£34.33
ex VAT£41.20inc. VAT
Regular price
Sale price
£34.33
ex VAT£41.20
inc. VAT
In stock
Price Break
10+
£30.55
19+
£28.84
29+
£28.49
39+
£28.15
49+
£27.81
74+
£27.46
99+
£25.75
199+
£25.40
249+
£25.06
499+
£24.72
999+
£24.03
Couldn't load pickup availability
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 47.63mm = 1.875 (1-7/8) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 94.06mm = 3.703 (3-45/64) inch
Technical
Technical
| d | 1-7/8 inch |
|---|---|
| h | 2-1/4" |
| a | 5-1/8" |
| e | 3-45/64" |
| b | 2-17/32" |
| s | M16 |
| g | 9/16" |
| w | 4-9/16" |
| D | 1" |
| Bi | 2.0315" |
| n | 0.7480" |
| Bolt Size | M16 |
| Weight | 2.8 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
