SKU: UCPA.206-19

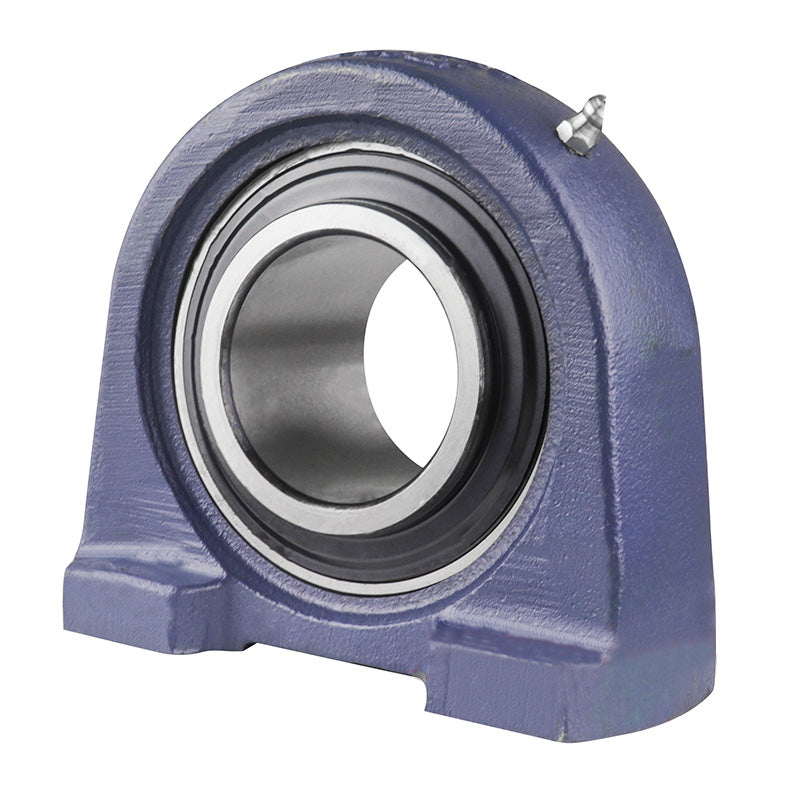

UCPA206-19 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-3/16 inch Bore Insert
UCPA206-19 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-3/16 inch Bore Insert
Regular price
£16.78
ex VAT£20.14inc. VAT
Regular price
Sale price
£16.78
ex VAT£20.14
inc. VAT
In stock
Price Break
10+
£14.93
19+
£14.10
29+
£13.93
39+
£13.76
49+
£13.59
74+
£13.42
99+
£12.59
199+
£12.42
249+
£12.25
499+
£12.08
999+
£11.75
Couldn't load pickup availability
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30.16mm = 1.187 (1-3/16) inch
- Style:
- UCPA
- Bolt Hole Centres:
- 65.88mm = 2.594 (2-19/32) inch
Technical
Technical
| d | 1-3/16 inch |
|---|---|
| h | 1-11/16" |
| a | 3-11/16" |
| e | 2-19/32" |
| b | 1-31/32" |
| s | M14 |
| g | 15/32" |
| w | 3-5/16" |
| D | 25/32" |
| Bi | 1.5" |
| n | 0.6260" |
| Bolt Size | M14 |
| Weight | 1.2 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
