SKU: UCP313D1-NTN

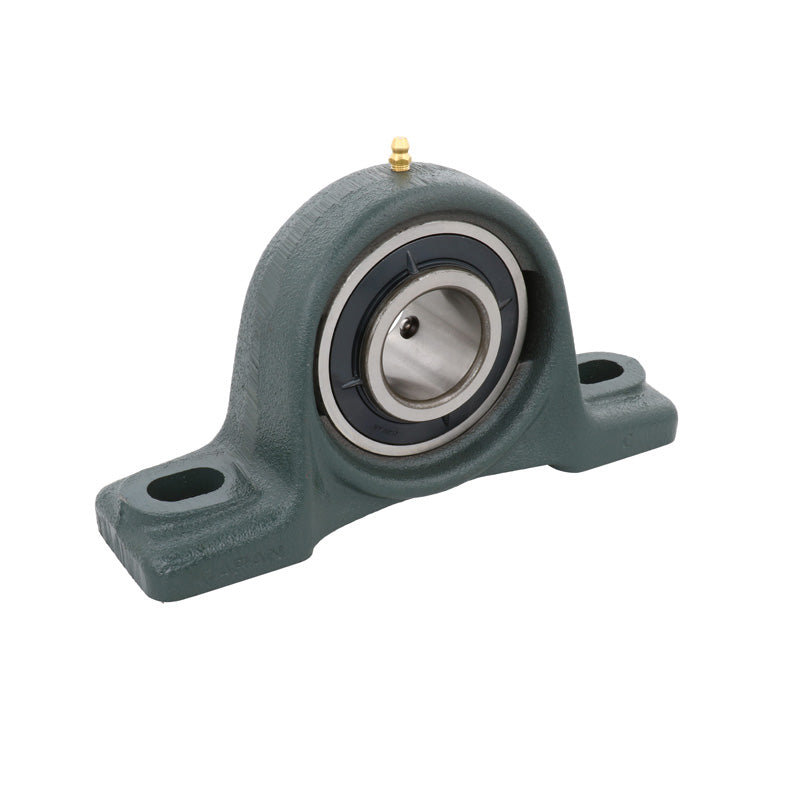

NTN UCP313D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
NTN UCP313D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price
£177.36
ex VAT£212.83inc. VAT
Regular price
Sale price
£177.36
ex VAT£212.83
inc. VAT
In stock
Price Break
5+
£175.59
10+
£168.49
20+
£164.94
50+
£159.62
100+
£156.08
500+
£147.21
1000+
£124.15
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCP
- Bolt Hole Centres:
- 260mm
Technical
Technical

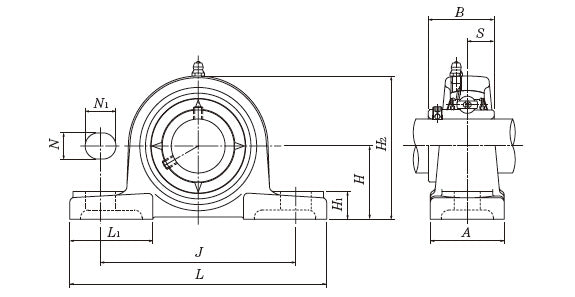

| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| H | 90mm |
| L | 340mm |
| J | 260mm |
| A | 90mm |
| N | 25mm |
| N<sub>1</sub> | 38mm |
| H<sub>1</sub> | 33mm |
| H<sub>2</sub> | 176mm |
| L<sub>1</sub> | 105mm |
| B | 75mm |
| S | 30mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 103 kN |
| Static load C<sub>0r</sub> | 60 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 10 kg |
