SKU: UCP311D1-NTN

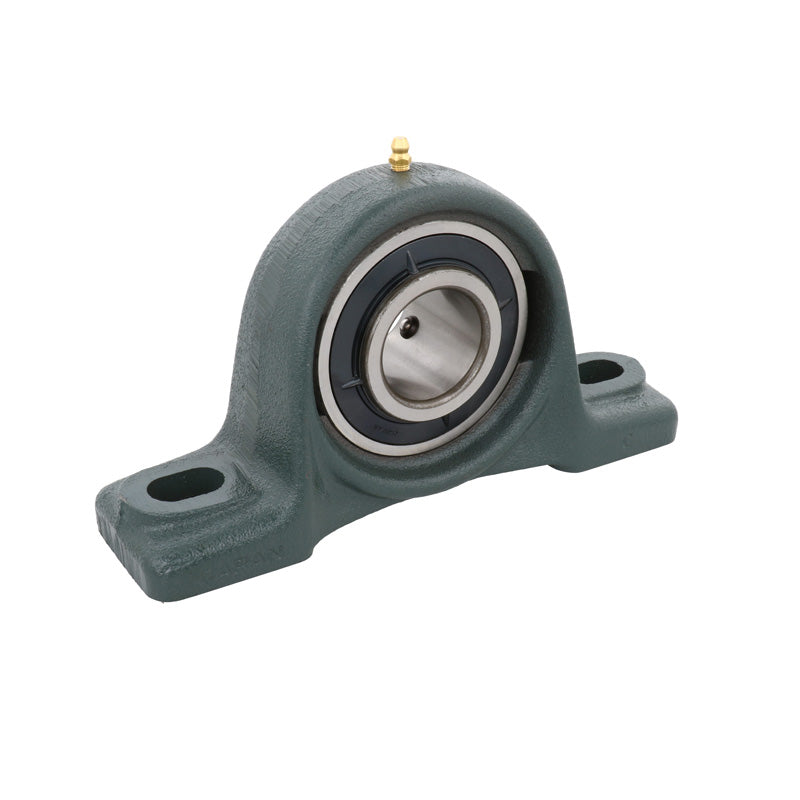

NTN UCP311D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
NTN UCP311D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
£132.98
ex VAT£159.58inc. VAT
Regular price
Sale price
£132.98
ex VAT£159.58
inc. VAT
In stock
Price Break
5+
£131.65
10+
£126.33
20+
£123.67
50+
£119.68
100+
£117.02
500+
£110.37
1000+
£93.09
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCP
- Bolt Hole Centres:
- 236mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| H | 80mm |
| L | 310mm |
| J | 236mm |
| A | 80mm |
| N | 20mm |
| N<sub>1</sub> | 38mm |
| H<sub>1</sub> | 30mm |
| H<sub>2</sub> | 154mm |
| L<sub>1</sub> | 85mm |
| B | 66mm |
| S | 25mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 79.5 kN |
| Static load C<sub>0r</sub> | 45 kN |
| Fatigue load limit C<sub>u</sub> | 3.5 kN |
| --- | Unit information |
| Mass | 7.3 kg |
