SKU: UCP309-SNR

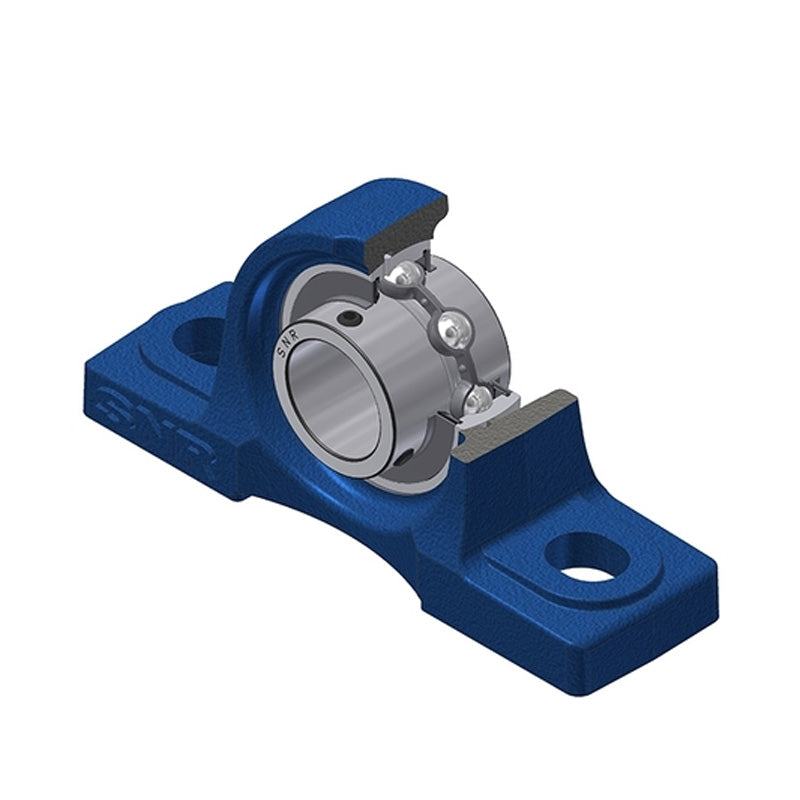

SNR UCP309 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
SNR UCP309 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert - Allow 2-3 Days
Regular price
£68.06
ex VAT£81.67inc. VAT
Regular price
Sale price
£68.06
ex VAT£81.67
inc. VAT
In stock
Price Break
10+
£60.57
19+
£57.17
29+
£56.49
39+
£55.81
49+
£55.13
74+
£54.45
99+
£51.05
199+
£50.36
249+
£49.68
499+
£49.00
999+
£47.64
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCP
- Bolt Hole Centres:
- 190mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 67mm |
| A1 | 45mm |
| B | 57mm |
| H | 67mm |
| H1 | 24mm |
| H2 | 129mm |
| J | 190mm |
| L | 245mm |
| L1 | 65mm |
| N | 20mm |
| N1 | 30mm |
| S | 22mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 53 kN |
| Static load C0 | 31.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 4.58 kg |
| Recommended tightening torque for set screw | 22 Nm |
