SKU: UCP309-111D1-NTN

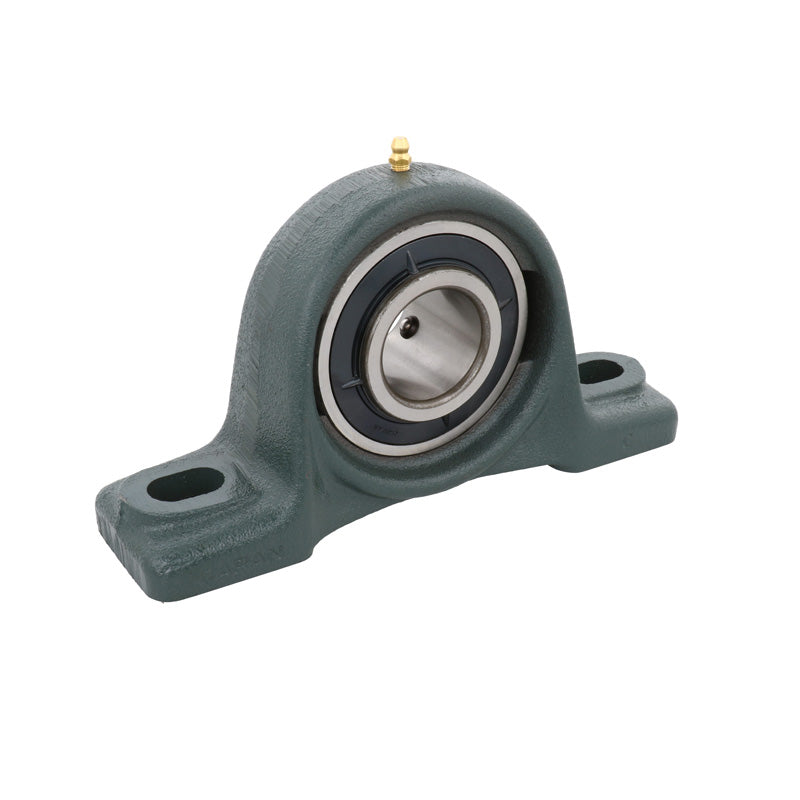

NTN UCP309-111D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Bore Insert - Allow 2-3 Days
NTN UCP309-111D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-11/16 inch Bore Insert - Allow 2-3 Days
Regular price
£110.86
ex VAT£133.03inc. VAT
Regular price
Sale price
£110.86
ex VAT£133.03
inc. VAT
In stock
Price Break
5+
£109.75
10+
£105.32
20+
£103.10
50+
£99.77
100+
£97.56
500+
£92.01
1000+
£77.60
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 42.86mm = 1.687 (1-11/16) inch
- Style:
- UCP
- Bolt Hole Centres:
- 7-15/32 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-11/16 inch |
| H | 2-41/64 inch |
| L | 9-21/32 inch |
| J | 7-15/32 inch |
| A | 2-5/8 inch |
| N | 25/32 inch |
| N<sub>1</sub> | 1-3/16 inch |
| H<sub>1</sub> | 15/16 inch |
| H<sub>2</sub> | 5-3/32 inch |
| L<sub>1</sub> | 2-9/16 inch |
| B | 2.2441 inch |
| S | 0.866 inch |
| Fixing bolt | 5/8 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58.5 kN |
| Static load C<sub>0r</sub> | 32 kN |
| Fatigue load limit C<sub>u</sub> | 2.5 kN |
| --- | Unit information |
| Mass | 9 lbs |
