SKU: UCP217-SNR

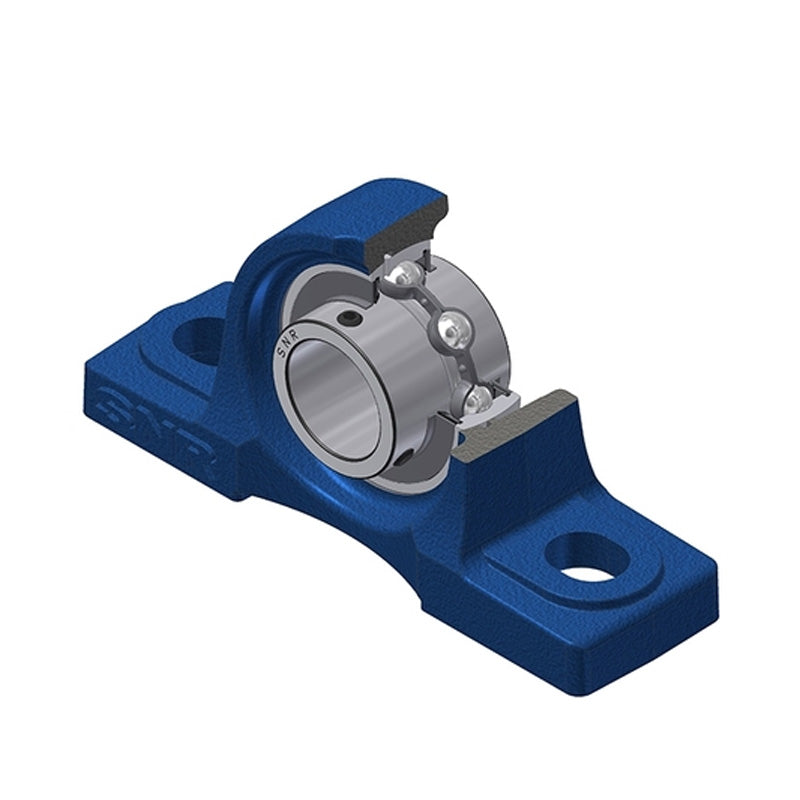

SNR UCP217 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
SNR UCP217 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 85mm Bore Insert - Allow 2-3 Days
Regular price
£149.41
ex VAT£179.29inc. VAT
Regular price
Sale price
£149.41
ex VAT£179.29
inc. VAT
In stock
Price Break
3+
£132.97
4+
£125.50
9+
£124.01
19+
£122.52
49+
£121.02
99+
£119.53
499+
£112.06
999+
£110.56
1999+
£109.07
2999+
£107.57
4999+
£104.59
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 85mm
- Style:
- UCP
- Bolt Hole Centres:
- 247mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 85mm |
| A | 83mm |
| A1 | 53mm |
| B | 85.7mm |
| H | 95.2mm |
| H1 | 32mm |
| H2 | 187mm |
| J | 247mm |
| L | 310mm |
| L1 | 96mm |
| N | 25mm |
| N1 | 31mm |
| S | 34.1mm |
| Grease fitting G | M10x1 |
| --- | Load rating |
| Dynamic load C | 83.2 kN |
| Static load C0 | 63.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 10.88 kg |
| Recommended tightening torque for set screw | 33 Nm |
