SKU: UCP213-40N-SNR

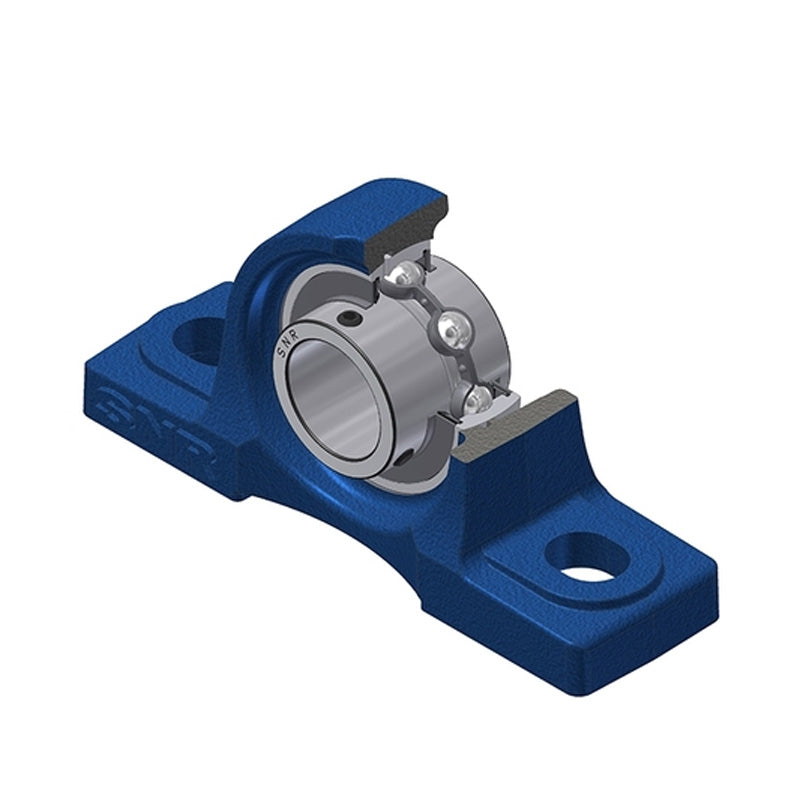

SNR UCP213-40N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing 2-1/2 inch Bore Insert - Allow 2-3 Days
SNR UCP213-40N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing 2-1/2 inch Bore Insert - Allow 2-3 Days
Regular price
£93.18
ex VAT£111.82inc. VAT
Regular price
Sale price
£93.18
ex VAT£111.82
inc. VAT
In stock
Price Break
10+
£82.93
19+
£78.27
29+
£77.34
39+
£76.41
49+
£75.48
74+
£74.54
99+
£69.89
199+
£68.95
249+
£68.02
499+
£67.09
999+
£65.23
Couldn't load pickup availability
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Style:
- UCP
- Bolt Hole Centres:
- 203mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 2-1/2 inch |
| A | 70mm |
| A1 | 46mm |
| B | 65.1mm |
| H | 76.2mm |
| H1 | 27mm |
| H2 | 150mm |
| J | 203mm |
| L | 265mm |
| L1 | 77mm |
| N | 25mm |
| N1 | 29mm |
| S | 25.4mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 57.2 kN |
| Static load C0 | 40 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 5.94 kg |
| Recommended tightening torque for set screw | 16.8 Nm |
