SKU: UCP212CC-SNR

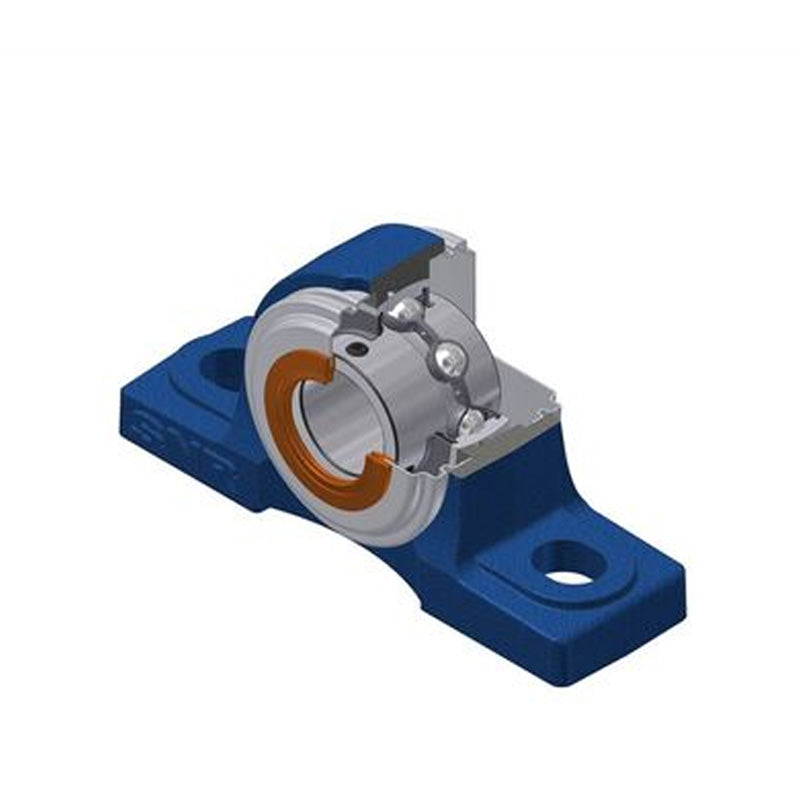

SNR UCP212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Steel Plate Cover - Closed Version
SNR UCP212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing 60mm Bore Insert with Steel Plate Cover - Closed Version
Regular price
£81.94
ex VAT£98.33inc. VAT
Regular price
Sale price
£81.94
ex VAT£98.33
inc. VAT
In stock
Price Break
3+
£72.92
4+
£68.83
9+
£68.01
19+
£67.19
49+
£66.37
99+
£65.55
499+
£61.45
999+
£60.63
1999+
£59.81
2999+
£58.99
4999+
£57.36
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 70mm |
| A1 | 44mm |
| B | 65.1mm |
| H | 69.8mm |
| H1 | 25mm |
| H2 | 138mm |
| J | 184mm |
| L | 241mm |
| L1 | 70mm |
| N | 20mm |
| N1 | 25mm |
| S | 25.4mm |
| Dz | 120mm |
| Z | 59.6mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 5.26 kg |
| Recommended tightening torque for set screw | 22 Nm |
