SKU: UCP209-SNR

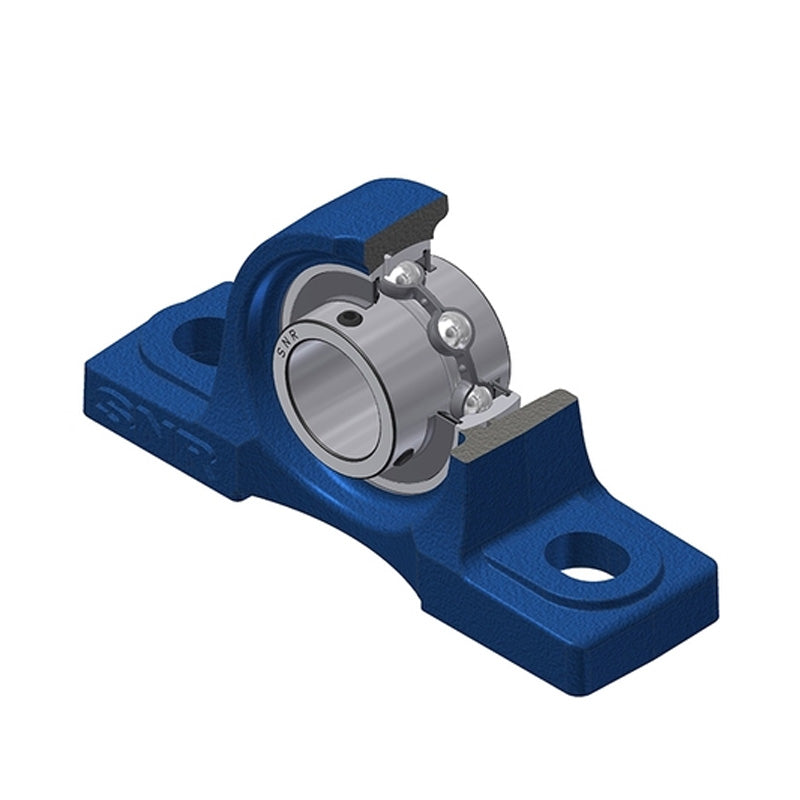

SNR UCP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
SNR UCP209 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 45mm Bore Insert
Regular price
£38.67
ex VAT£46.40inc. VAT
Regular price
Sale price
£38.67
ex VAT£46.40
inc. VAT
In stock
Price Break
3+
£34.41
4+
£32.48
9+
£32.09
19+
£31.71
49+
£31.32
99+
£30.93
499+
£29.00
999+
£28.61
1999+
£28.23
2999+
£27.84
4999+
£27.07
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCP
- Bolt Hole Centres:
- 146mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 45mm |
| A | 54mm |
| A1 | 37mm |
| B | 49.2mm |
| H | 54mm |
| H1 | 20mm |
| H2 | 108mm |
| J | 146mm |
| L | 190mm |
| L1 | 60mm |
| N | 17mm |
| N1 | 23mm |
| S | 19mm |
| Grease fitting G | M6x1 |
| --- | Load rating |
| Dynamic load C | 31.85 kN |
| Static load C0 | 20.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 2.38 kg |
| Recommended tightening torque for set screw | 11.5 Nm |
