SKU: UCP.317

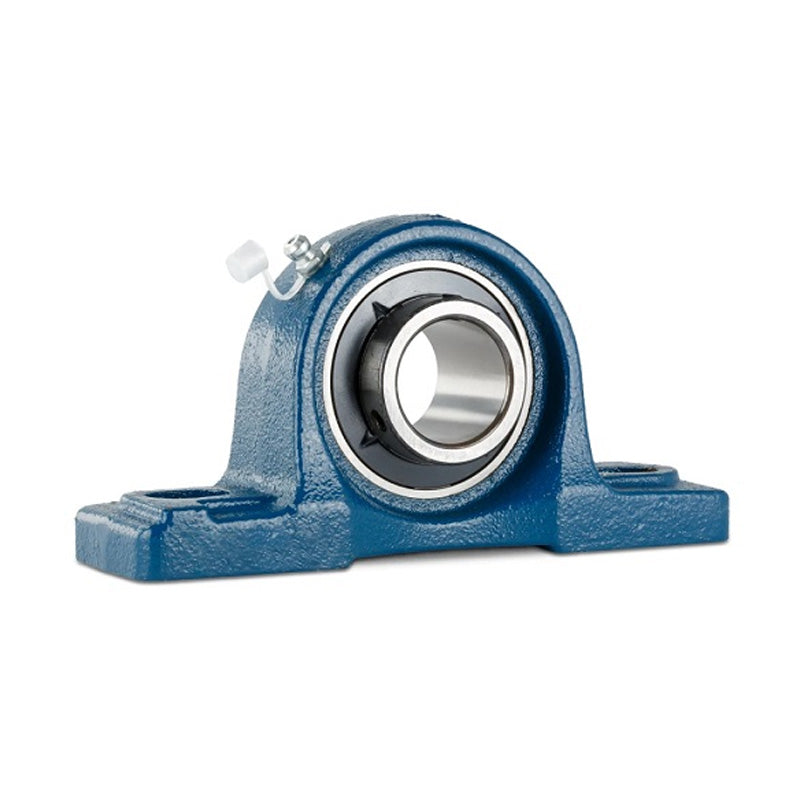

UCP317 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 85mm Bore Insert
UCP317 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 85mm Bore Insert
Regular price
£239.85
ex VAT£287.82inc. VAT
Regular price
Sale price
£239.85
ex VAT£287.82
inc. VAT
In stock
Price Break
10+
£213.47
19+
£201.47
29+
£199.08
39+
£196.68
49+
£194.28
74+
£191.88
99+
£179.89
199+
£177.49
249+
£175.09
499+
£172.69
999+
£167.90
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 85mm
- Style:
- UCP
- Bolt Hole Centres:
- 320mm
Technical
Technical
| d | 85mm |
|---|---|
| h | 112mm |
| a | 420mm |
| e | 320mm |
| b | 110mm |
| s2 | 45mm |
| s1 | 33mm |
| g | 40mm |
| w | 220mm |
| b1 | 96mm |
| n | 40mm |
| Bolt | 27mm |
| Weight | 19.2 kg |
| Dynamic load | 10410 kgf |
| Static load | 9130 kgf |
