SKU: UCP.312

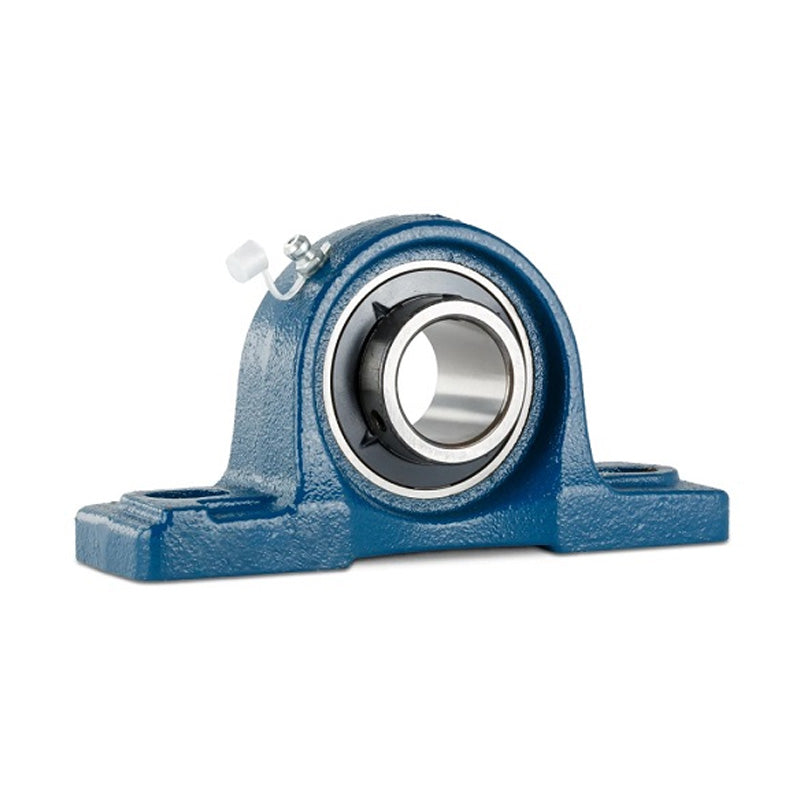

UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
UCP312 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 60mm Bore Insert
Regular price
£64.59
ex VAT£77.51inc. VAT
Regular price
Sale price
£64.59
ex VAT£77.51
inc. VAT
In stock
Price Break
10+
£57.49
19+
£54.26
29+
£53.61
39+
£52.96
49+
£52.32
74+
£51.67
99+
£48.44
199+
£47.80
249+
£47.15
499+
£46.50
999+
£45.21
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCP
- Bolt Hole Centres:
- 250mm
Technical
Technical
| d | 60mm |
|---|---|
| h | 85mm |
| a | 330mm |
| e | 250mm |
| b | 85mm |
| s2 | 38mm |
| s1 | 25mm |
| g | 32mm |
| w | 165mm |
| b1 | 71mm |
| n | 26mm |
| Bolt | 20mm |
| Weight | 9.4 kg |
| Dynamic load | 6420 kgf |
| Static load | 4960 kgf |
