SKU: UCP.310

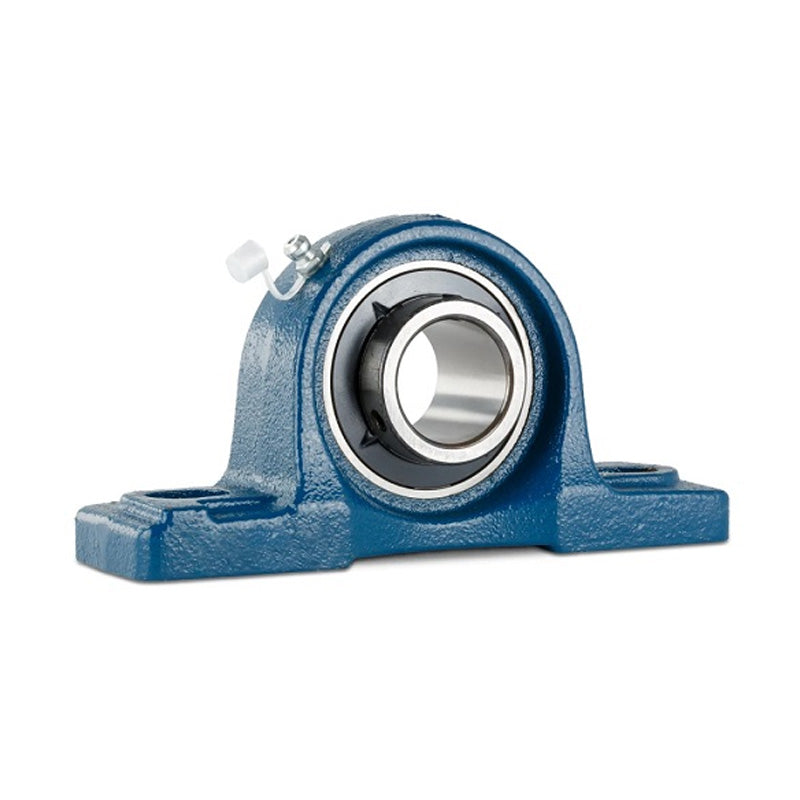

UCP310 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 50mm Bore Insert
UCP310 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 50mm Bore Insert
Regular price
£59.21
ex VAT£71.05inc. VAT
Regular price
Sale price
£59.21
ex VAT£71.05
inc. VAT
In stock
Price Break
10+
£52.70
19+
£49.74
29+
£49.14
39+
£48.55
49+
£47.96
74+
£47.37
99+
£44.41
199+
£43.82
249+
£43.22
499+
£42.63
999+
£41.45
Couldn't load pickup availability
Description
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCP
- Bolt Hole Centres:
- 212mm
Technical
Technical
| d | 50mm |
|---|---|
| h | 75mm |
| a | 275mm |
| e | 212mm |
| b | 75mm |
| s2 | 35mm |
| s1 | 20mm |
| g | 27mm |
| w | 143mm |
| b1 | 61mm |
| n | 22mm |
| Bolt | 16mm |
| Weight | 6.4 kg |
| Dynamic load | 4850 kgf |
| Static load | 3640 kgf |
