SKU: UCP.212-38

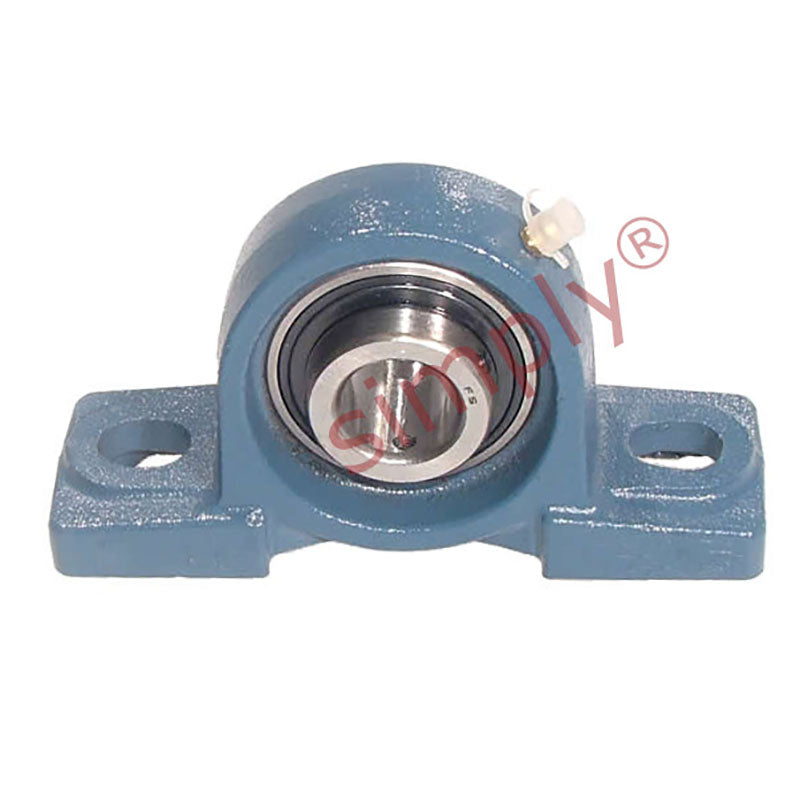

UCP212-38 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/8 inch Bore Insert
UCP212-38 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/8 inch Bore Insert
Regular price
£11.92
ex VAT£14.30inc. VAT
Regular price
£21.67
Sale price
£11.92
ex VAT£26.00£14.30
inc. VAT
Low stock
Price Break
10+
£10.61
19+
£10.01
29+
£9.89
39+
£9.77
49+
£9.66
74+
£9.54
99+
£8.94
199+
£8.82
249+
£8.70
499+
£8.58
999+
£8.34
Couldn't load pickup availability
Share this product
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60.33mm = 2.375 (2-3/8) inch
- Style:
- UCP
- Bolt Hole Centres:
- 184mm
Technical
Technical
| d | 2-3/8 inch |
|---|---|
| h | 69.8mm |
| a | 241mm |
| e | 184mm |
| b | 70mm |
| s2 | 25mm |
| s1 | 20mm |
| g | 25mm |
| w | 137mm |
| B1 | 65.1mm |
| n | 25.4mm |
| Bolt Size | M16 |
| Weight | 4.8 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
