SKU: UCP.201

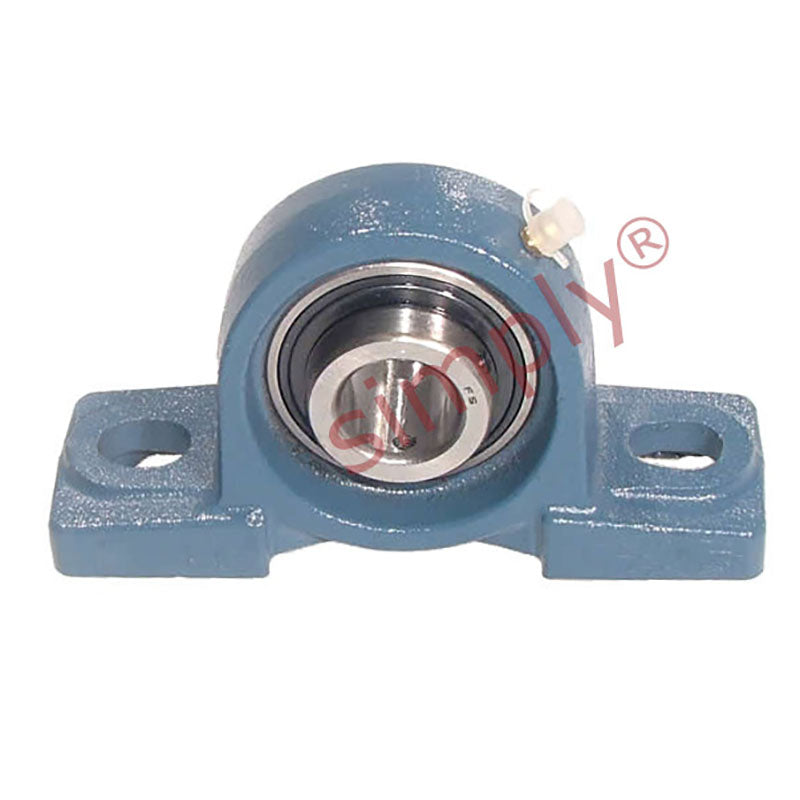

UCP201 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Bore Insert
UCP201 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Bore Insert
Regular price
£10.72
ex VAT£12.86inc. VAT
Regular price
Sale price
£10.72
ex VAT£12.86
inc. VAT
Equivalent to: NP12
In stock
Price Break
3+
£9.54
4+
£9.01
9+
£8.90
19+
£8.79
49+
£8.68
99+
£8.58
499+
£8.04
999+
£7.93
1999+
£7.83
2999+
£7.72
4999+
£7.50
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: NP12
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12mm
- Style:
- UCP
- Bolt Hole Centres:
- 96mm
Technical
Technical
| d | 12mm |
|---|---|
| h | 30.2mm |
| a | 127mm |
| e | 96mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 15mm |
| w | 62mm |
| B1 | 31mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.63 kg |
| Dynamic load | 750 kgf |
| Static load | 450 kgf |
| Rec max speed | 8800 rpm |
