SKU: UCLP211-35

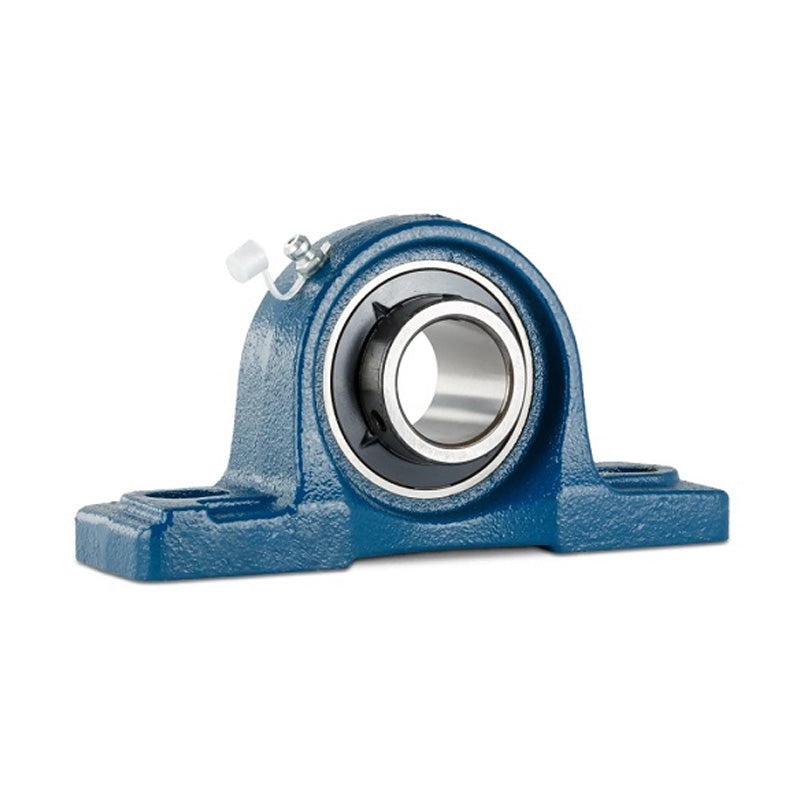

UCLP211-35 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Insert
UCLP211-35 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-3/16 inch Insert
Regular price
£47.57
ex VAT£57.08inc. VAT
Regular price
Sale price
£47.57
ex VAT£57.08
inc. VAT
In stock
Price Break
3+
£42.33
4+
£39.95
9+
£39.48
19+
£39.00
49+
£38.53
99+
£38.05
499+
£35.67
999+
£35.20
1999+
£34.72
2999+
£34.25
4999+
£33.30
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55.56mm = 2.187 (2-3/16) inch
- Style:
- UCLP
- Bolt Hole Centres:
- 171.05mm = 6.734 (6-47/64) inch
Technical
Technical
| d | 2-3/16 inch |
|---|---|
| h | 2-7/16 inch |
| a | 8-5/8 inch |
| e | 6-47/64 inch |
| b | 2-3/8 inch |
| s1 | 25/32 inch |
| s2 | 29/32 inch |
| g | 29/32 inch |
| w | 4-7/8 inch |
| B | 2.189 inch |
| n | 0.874 inch |
| Bolt size | 5/8 inch |
| Bearing no | UC211-35 |
| Housing no | LP211 |
| Weight | 3.2 kg |
