SKU: UCLP211

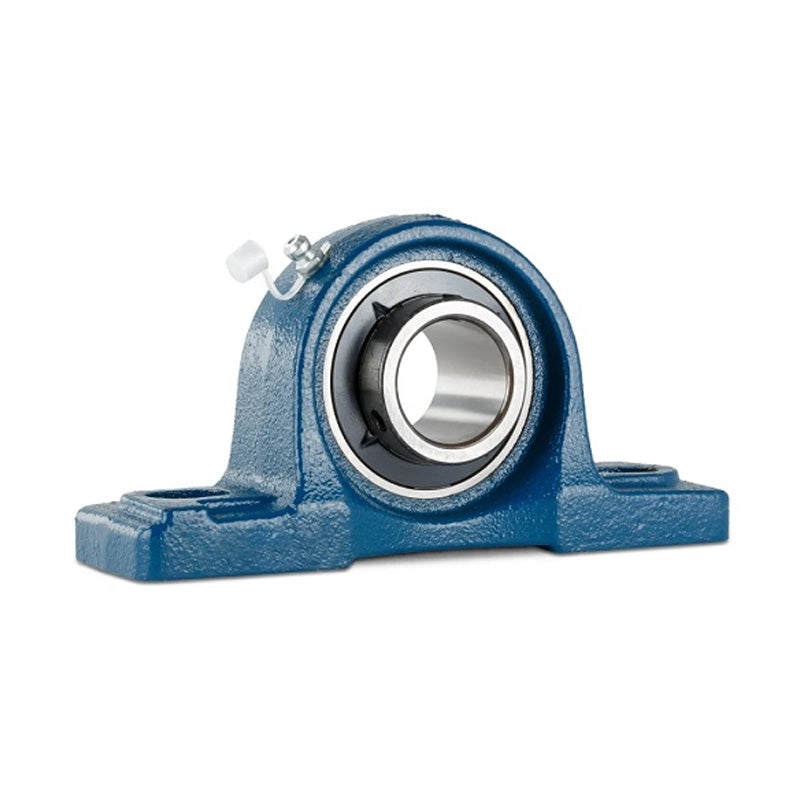

UCLP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Insert
UCLP211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Insert
Regular price
£46.70
ex VAT£56.04inc. VAT
Regular price
Sale price
£46.70
ex VAT£56.04
inc. VAT
In stock
Price Break
3+
£41.57
4+
£39.23
9+
£38.76
19+
£38.30
49+
£37.83
99+
£37.36
499+
£35.03
999+
£34.56
1999+
£34.09
2999+
£33.63
4999+
£32.69
Share this product
Description
Description
UCLP200 Series Normal Duty 2 Bolt Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCLP
- Bolt Hole Centres:
- 171mm
Technical
Technical
| d | 55mm |
|---|---|
| h | 61.91mm |
| a | 219mm |
| e | 171mm |
| b | 60mm |
| s1 | 20mm |
| s2 | 23mm |
| g | 23mm |
| w | 124mm |
| B | 55.6mm |
| n | 22.2mm |
| Bolt size | M16 |
| Bearing no | UC211 |
| Housing no | LP211 |
| Weight | 3.22 kg |
